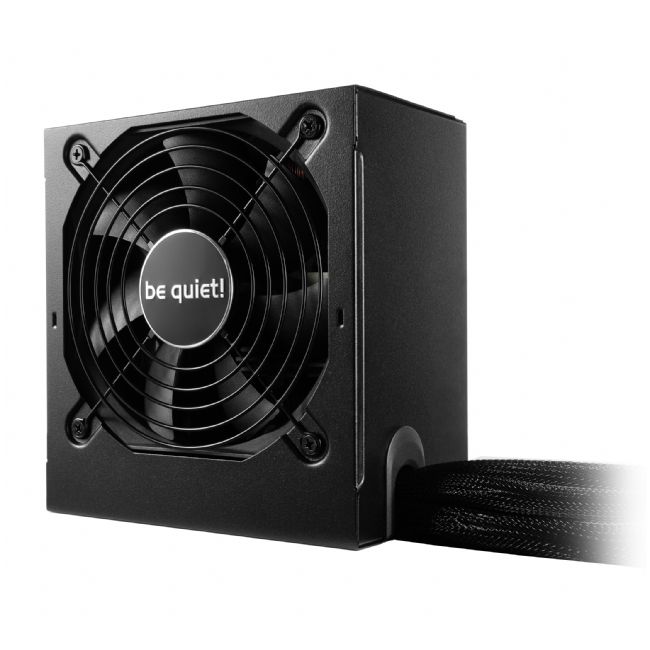

Be Quiet! System Power 9 - 500 Watt
Levertijd: niet voorradig, levertijd onbekend. € 55,12
Proven Reliability and Good Efficiency
Specially designed by be quiet! with the price-concious PC builder in mind: System Power 9 500W offers renowned be quiet! performance and quietness and makes it possible for you to build cost-effective and reliable systems.
- Rock-solid stability with two strong 12V-rails
- Equipped with DC-to-DC technology for tight voltage regulation
- Two PCIe connectors for multi-GPU system configurations
- Temperature-controlled 120mm fan reduces system noise
- Low stand-by drain of less than 0.15 watts
- 80PLUS® Bronze efficiency of up to 89%
- Attractive black sleeved cables
- Complete suite of top safety features
- Meets latest Intel® C6/C7, ErP and Energy Star 6.1 guidelines
- Supports latest Intel® and AMD™ processors
- 3-year manufacturer’s warranty
- Product conception, design and quality control in Germany
Specially designed by be quiet! with the price-concious PC builder in mind: System Power 9 500W offers renowned be quiet! performance and quietness and makes it possible for you to build cost-effective and reliable systems.
- Rock-solid stability with two strong 12V-rails
- Equipped with DC-to-DC technology for tight voltage regulation
- Two PCIe connectors for multi-GPU system configurations
- Temperature-controlled 120mm fan reduces system noise
- Low stand-by drain of less than 0.15 watts
- 80PLUS® Bronze efficiency of up to 89%
- Attractive black sleeved cables
- Complete suite of top safety features
- Meets latest Intel® C6/C7, ErP and Energy Star 6.1 guidelines
- Supports latest Intel® and AMD™ processors
- 3-year manufacturer’s warranty
- Product conception, design and quality control in Germany
| Poorten & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Lengte stroomkabel moederbord | 55 cm |
| Aantal SATA power connectors | 6 |
| Aantal PATA power aansluiters | 2 |
| Lengte SATA-stroomkabel | 350,550 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| Lengte PCI Express-stroomkabel | 50 cm |
| CPU power connector (4+4 pin) | Ja |
| Lengte CPU-stroomkabel | 60 cm |
| Gewicht en omvang | |
| Breedte | 150 mm |
| Diepte | 140 mm |
| Hoogte | 86 mm |
| Gewicht | 1,92 kg |
| Energie | |
| Totaal vermogen | 500 W |
| AC invoer voltage | 200 - 240 |
| AC invoer frequentie | 50 |
| Stroom | 4 |
| Power factor | 0,95 |
| Power Factor Correctie (PFC) type | Actief |
| Gecombineerd vermogen (+3.3V) | 110 W |
| Gecombineerd vermogen (+12V) | 456 W |
| Gecombineerd vermogen (+5V) | 110 W |
| Gecombineerd vermogen (-12V) | 3,6 W |
| Gecombineerd vermogen(+5Vsb) | 15 W |
| Max huidige output (+3.3V) | 24 A |
| Max output current (+12V1) | 24 A |
| Max output current (+12V2) | 20 A |
| Max huidige output (+5V) | 15 A |
| Max huidige output (-12V) | 0,3 A |
| Max huidige output (+5Vsb) | 3 A |
| Houd-tijd | 17 ms |
| Efficientie | 89 procent |
| Stroomspanning bescherming | Overstroom, Te hoog vermogen, Overspanning, Oververhitting, Kortsluiting, Onder spanning |
| Technische details | |
| Meegeleverde kabels | AC |
| Verpakking | |
| Breedte verpakking | 97 mm |
| Diepte verpakking | 268 mm |
| Hoogte verpakking | 195 mm |
| Gewicht verpakking | 2,16 kg |
| Type verpakking | Doos |
| Certificaten | |
| 80 PLUS certificatie | 80 PLUS Bronze |
| Energy Star-certificaat | Ja |
| RoHS compliance | Ja |
| Certificering | CE, CB, TÜV, RCM, CU |
| Inhoud van de verpakking | |
| Inclusief schroeven | Ja |
| Gebruikershandleiding | Ja |
| Koeling | |
| Ventilator diameter | 12 cm |
| Aantal ventilatoren | 1 ventilator(en) |
| Design | |
| Kleur van het product | Zwart |
| Belichting | Nee |
| Prestatie | |
| Bedoeld voor | PC |
| Vormfactor van de voeding (PSU) | ATX |
| ATX version | 2.4 |
| Stille modus | Ja |
| Geluidsniveau (stille modus, <30%) | 11,1 dB |
| Geluidsniveau (stille modus, 50%) | 13,6 dB |
| Geluidsniveau (volle belastingmode, 100%) | 28,2 dB |
| Bearing technologie | Hoes |
| Aan/uitschakelaar | Ja |
