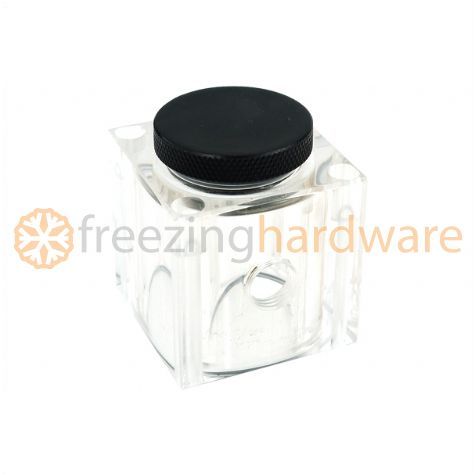

Alphacool reservoir individual for DC-LT pumps

The Alphacool reservoir individual for DC-LT pump is another module for expansion and improvement of the Alphacool DC-LT ceramic 12 Volt pump. As basis a pump already equipped with an Alphacool DC-LT Plexi top is used. With only few steps this pump can now be additionally equipped with a reservoir. Simply place the reservoir on the included ring gasket and tighten the four also included screws in the corners: Done!

¼” threads are machined into the side of the reservoir. They can be used as an Inlet or for a lighting module.

Technical specifications

• Material: Röhm Plexiglas GS / brass
• Color: Transparent / black
• Dimensions (LxWxH): 49x49x56mm (without fittings, without pump)
• Weight: 141g
• Connection threads: 1x ¼”
• Fill level indicator thread: 1”

Extent of delivery

• 1x Alphacool reservoir individual for DC-LT pumps
• 1x Gasket
• 1x Fill level indicator with gasket
• 4 mounting screws
