Fractal Design Define XL R2 - black pearl

Fractal Design builds on the success of its awarding-winning Define XL computer case with the Define XL R2. This updated chassis carries on the family tradition of providing superb cooling and ventilation capabilities with exceptional expandability, in a sleek and stylish Scandinavian form.

The Define XL R2, which includes Fractal Design’s innovative ModuVent™ feature, has an updated internal layout that offers greater expandability, modularity and flexibility, including capacity for 9 PCI cards and two HDD cages that can be repositioned to provide more space for water cooling radiators.

Key features

• High density noise-reducing material for an optimal silent case
• Patented ModuVent™ design allowing the user to choose between optimal silence or maximum airflow.
• With a new internal layout and additional PCI expansion slots, it can harbor the most powerful enthusiast systems.
• Both HDD cages can be removed or repositioned - Top HDD cage can be removed or repositioned for increased airflow whereas bottom HDD cage can be repositioned further into the case to allow for front radiator mount.
• The case can fit water cooling equipment in the front, top, rear and bottom without major modifications.
• Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans
• Three Silent Series R2 fans are included, featuring hydraulic bearings which contribute to a longer life expectancy – Silent Series R2 retail fans now come standard in all cases
• New tool-less front fan holder makes switching front fans a breeze

Specifications

• ATX, Micro ATX, mini-ITX, E-ATX and XL-ATX motherboard compatibility
• 4 - 5.25" bays
• 8 - 3.5" HDD trays - all compatible with SSDs

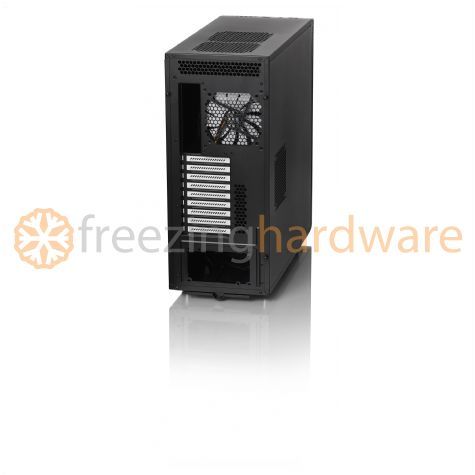

• A total of 9 expansion slots
• 3 - ModuVent™ plates – two in the top and one in the side
• 7 - Fan positions (3 fans included)
• Filtered fan slots in front and bottom
• CPU coolers up to 170 mm tall (when no fan is installed in the side panel)
• PSU compatibility: ATX PSUs up to 190 mm deep when using the bottom fan location; when not using this fan location longer PSUs (up to 345 mm deep) can be used
• Graphics card compatibility: Graphics cards up to 330mm in length with the top HDD cage installed - With the top cage removed, graphics cards up to 480mm in length may be installed
• 26 mm of space for cable routing behind the motherboard plate
• Thick rubber grommets on all holes on the motherboard plate
• Colors available: Black Pearl, Titanium Grey
• Case dimensions (WxHxD): 232 x 559 x 560mm
• Net weight: 16.4kg
• Package dimensions (WxHxD): 322 x 637 x 655mm
• Package weight: 19kg

Cooling system

• Front: 1 - hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed (included); 1 - 120/140mm fan (not included)
• Rear: 1 - hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed (included)
• Top: 2 - 120/140mm fans (not included) – positions also support 240/280mm slim radiators
• Bottom: 1 - hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed (included)
• Side: 1 - 140mm fan (not included)
• Fan controller: 1 - integrated fan controller for up to 3 fans (included)

Water cooling compatibility

• Front – 240mm radiator when HDD cages are removed or repositioned
• Top – 240 and 280mm when using slim radiators
• Bottom – 120mm radiators
• Rear – 120 and 140mm radiators

Front Interface

• 2 - USB 3.0, 2 - USB 2.0
• Audio in/out
• Power button with LED (blue)
• Reset button
• Fan controller (behind door)

Package Contents

• Define XL R2 computer case
• Accessory box
• User manual

Additional information

• EAN/GTIN-13: 7350041081005
• UPC: 817301011006
• Product code: FD-CA-DEF-XL-R2-BL
