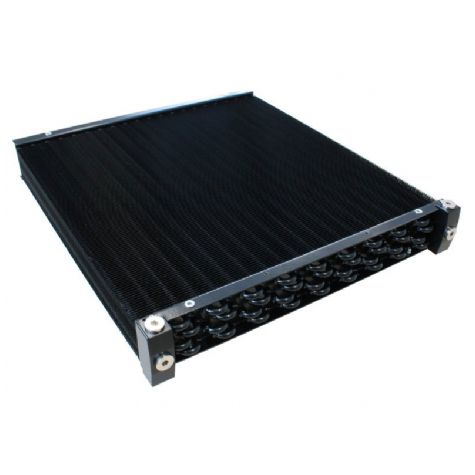

Watercool MO-RA3 420 Core
Levertijd: niet voorradig, levertijd onbekend. € 218,29
The MO-RA3 Core utilises a slightly modified cooling design. The cooling fluid passes the tubes in a three-time parallel layout. The fins of the MO-RA3 have been optimised specifically for low-rpm fans. Their enormous surface and effective geometry guarantee excellent cooling performance.
The highly parallel layout and the flow-optimised connection block ensure a low flow-resistance, despite the large size of the heat-exchanger. The connection block improves flexibility as well by providing G1/4“ threads in three directions.
The MO-RA3 Core is shipped without casing. It is meant for individual designs and may be used actively or passively. Four M4 threads per side may be used for self-made fan grills or for mounting it on a case. The MO-RA3 fan grills cannot be mounted on the MO-RA3 Core.
The MO-RA3 is produced in Europe. Development and final assembly happen in Germany, like the manufacturing of most of its components.
Specifications
Included
The highly parallel layout and the flow-optimised connection block ensure a low flow-resistance, despite the large size of the heat-exchanger. The connection block improves flexibility as well by providing G1/4“ threads in three directions.
The MO-RA3 Core is shipped without casing. It is meant for individual designs and may be used actively or passively. Four M4 threads per side may be used for self-made fan grills or for mounting it on a case. The MO-RA3 fan grills cannot be mounted on the MO-RA3 Core.
The MO-RA3 is produced in Europe. Development and final assembly happen in Germany, like the manufacturing of most of its components.
Specifications
- Material: Copper (tubes), aluminium (fins)
- Surface: Black powder-coating
- Dimensions (L x W x H): 470 x 420 x 63 mm
- Weight: approx. 6000 g
- Pressure tested: 5 bar
- Threads: 6x G ¼” (DIN ISO 228-1)
Included
- 1x MO-RA3 420 Core
- 4x Screw Plug G ¼”
- 4x Spacers M4x20 mm
- 1x Manual
