Jonsbo U3 - zilver

Levertijd: niet voorradig, levertijd onbekend.
€ 85,51
  • Klik op de foto voor een vergroting.
  • Klik op de foto voor een vergroting.
  • Klik op de foto voor een vergroting.
  • Klik op de foto voor een vergroting.
  • Klik op de foto voor een vergroting.
  • Toon alle producten van Jonsbo.
Merk: Jonsbo

EAN code: 6970620550268
SKU code: JB U3 S
Under the label "Cooltek - powered by Jonsbo" we present the highest quality cases for demanding users.

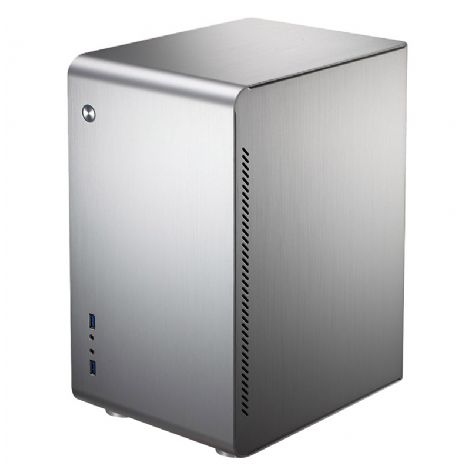

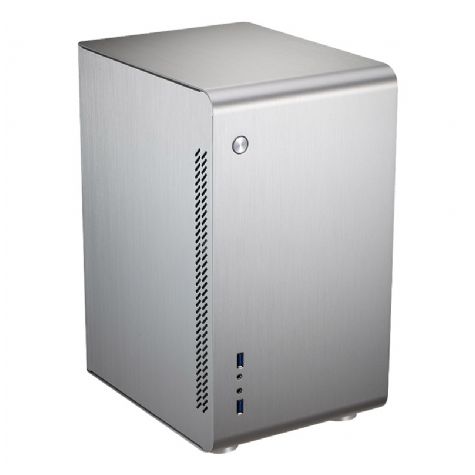

The "U3" is the biggest model in the attractive U series for home PC systems. The main feature of this case series is the timeless design line with the elegantly rounded corners and a very appealing exterior.

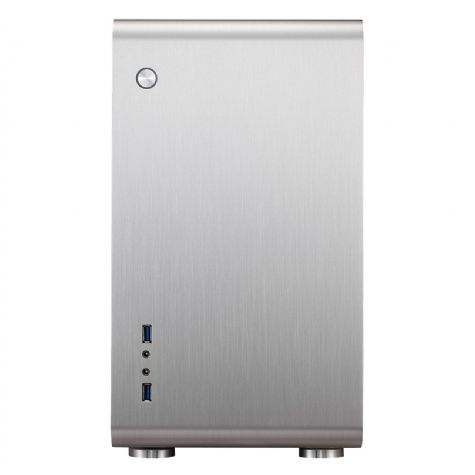

This refined and at the same time unobtrusive design of the case ensures that it can blend in with any interior style. The blue illuminated power button and the I/O panel with 2x USB 3.0 and the HD audio connectors is recessed into the sleek front. The frame of the "U3" is made of 2.0 mm thick, anodized aluminum, side and rear panels are each 1.5 mm thick. Three color options - black, silver and red - are available.

Based on our experience and by studying customer requirements, the focus during the development of the case series was the implementation of the original M-ATX/Mini-ITX concept. For this reason, assembly areas for optical drives or extra-long video cards have been left out. VGA cards up to a length of 260 mm and CPU coolers up to a height of 175 mm are supported - enough space for the almost all common configurations.

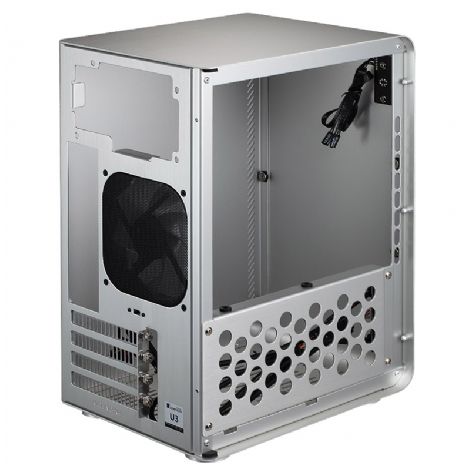

The high-quality and well-manufactures Micro-ATX case supports motherboards up to a maximum size of 245 x 245 mm. The installation of the motherboard is very simple - after you remove the left side panel it can be installed with little effort on the right side panel. The "U3" can accommodate standard ATX power supply and offers a total of 4 expansion slots.

In order to guarantee a particularly smooth-running system, the hard disk drives are anti-vibration mounted at the bottom of the “U3". You can install 2 x 2.5 inch or 1 x 3.5 inch HDD / SSD. An additional 3.5 inch hard drive can be installed in the HDD-rack on the side.

For ensure effective case ventilation, the "U3" is equipped with an included quiet running 120 mm fan in the rear. The performance of the fan can be adjusted individually to your own liking via an external multi-stage switch. Even without the use of a front fan an effective cooling of the system is possible.

The "U3" is aimed at users who are looking for a very stylish PC for typical living room applications or an elegant gaming system. Through its intelligent design, CPU cooler with a maximum height of 175 mm can be installed. Therefore even very powerful tower coolers can be installed in the “U3”. In combination with space for up to four expansion cards and high performance video cards thus a compact yet potent system can be installed in the “U3”.

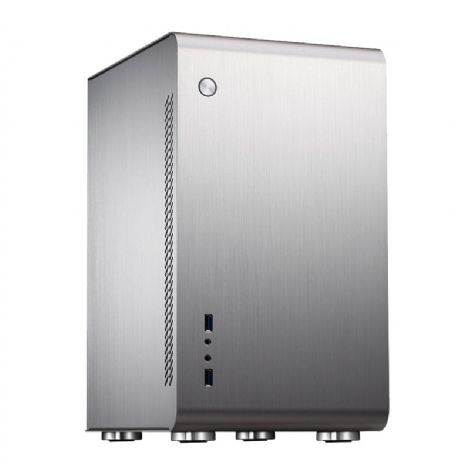

The stylish case rests on vibration-decoupled case feet in the appealing looks of high-quality Hifi components.

Two USB 3.0 “Super Speed” connectors are available externally. Thus, external hard disk or USB drives can be connected quickly and easily.

Depicted hardware is not included.

Specifications
  • Case Type: HTPC / M-ATX
  • Form Factor: Micro-ATX
  • 3.5 inch drive bay internal: 2 x (optional)
  • 2,5" inch drive bay internal: 2 x (optional)
  • Case fan (rear): 1 x 120 mm
  • Height x Width x Depth: 359 x 208 x 270 mm
  • Weight: 3.1 kg
  • Material: 2,0 / 1,5 mm aluminium
  • Maximum height of CPU coolers: 175 mm
  • Maximum length of VGA cards: 260 mm
  • Code: 4250140364609
  • Manufacturer number: JB U3 S
