Aqua-Computer aquaero 6 PRO USB fancontroller + graphic LCD

The aquaero is an absolutely autonomous working microprocessor-controlled device with USB 2.0 interface. All speed parameters and sensor values can be set and visualized in an user-friendly menu or through an even easier to use PC-software. Additionally, the graphic LC display can be used to display almost any information using the popular LCD software LCDHype.

The key features of the aquaero 6 include

• Programmable four channel fan controller

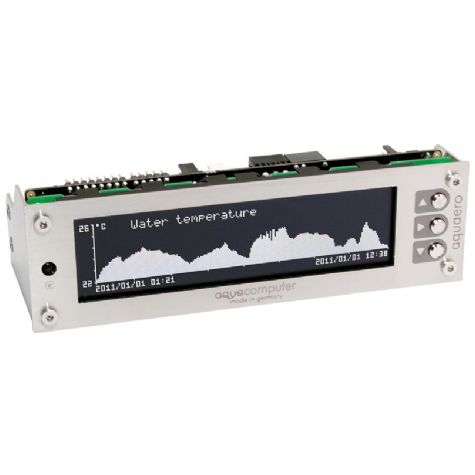

• Graphic LC display with backlight
• USB 2.0 and aquabus interface
• Four fan outputs with up to 30 Watt of power per channel
• All fan outputs with 4-Pin plug, switchable between voltage and PWM control
• Versatile control options
• Eight temperature sensor inputs
• Flow sensor input
• Universal IR receiver
• Output for IR transmitter
• Three LED outputs
• Potential-free switch
• Two additional power outputs
• Extensive alarm options
• Acoustical alarm
• Speed signal output for status evaluation
• Expandable to a maximum of 12 fan channels

Several aqua computer products can be used to expand the functionality of the aquaero 6 controller. These expansions are dynamically mapped into the menus and display pages of the aquaero, creating a consitent control system rather than individual devices.

In maximum configuration, the following devices can be connected to an aquaero 6 simultaneously

• Two aquastream XT pumps
• Eight poweradjust 2/3 controllers
• Four mps-based devices (flow sensor, pressure/fill level sensor and D5 pump with aquabus)
• One tubemeter
• Two multiswitches

Scope of delivery

• aquaero 6 PRO controller
• four temperature sensors, length approx. 70 cm
• one internal USB cable, length approx. 100 cm
• one connection cable for speed signal or aquabus
• manual
• mounting material for installation into a free extension bay
