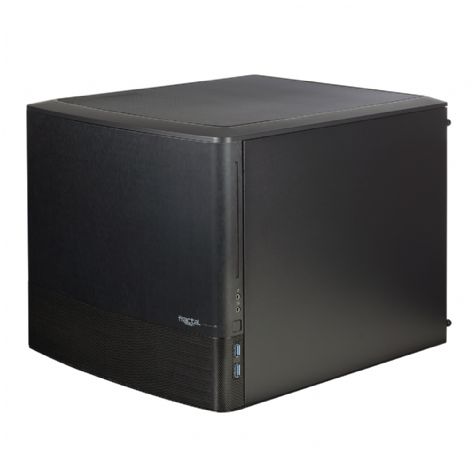

Fractal Design Node 804 - zwart

The Node 804 is a micro ATX chassis which focuses on cooling performance and maximum configurability, all packed in an interesting new form factor with Scandinavian elegant design.

The dual chamber layout separates hot running components from the cooler ones and allows for unrestricted airflow over the motherboard, processor and graphics card.

The case comes with three excellent 120mm fans but can be upgraded with several additional fans if needed. Featuring plenty of options for placing water cooling components, tall heat sinks and hard drives. The flexibility of this case really gives the users the possibility to create their optimal system build.

Key features

• Highly effective dual chamber case layout for best possible cooling.

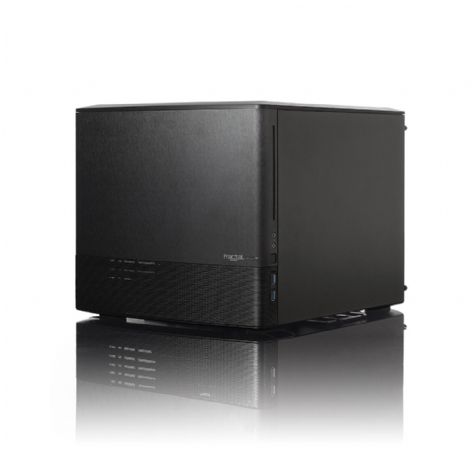

• Minimalistic design with an elegant brushed aluminum front panel

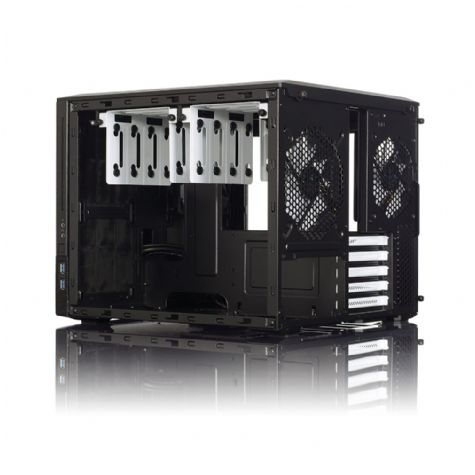

• Unique hard drive mounting system, fitting up to 8 x 3.5″, 4 x 2.5” or up to 10 x 3.5”, 2 x 2.5″ drives HDD/SSD
• Three Fractal Design Silent Series R2 fans included with the case and space for an additional 7 fans.
• Excellent water cooling support with space for up to 4 radiators simultaneously.
• All intakes feature removable dust filters providing a dust-free interior.

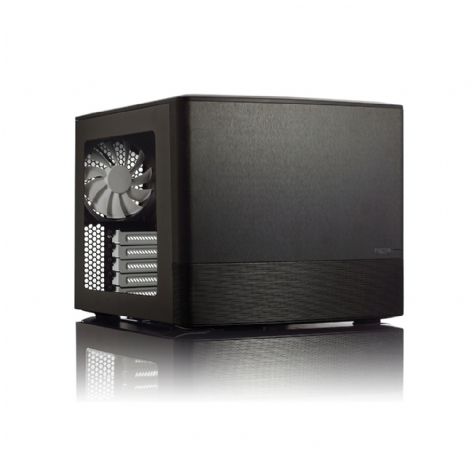

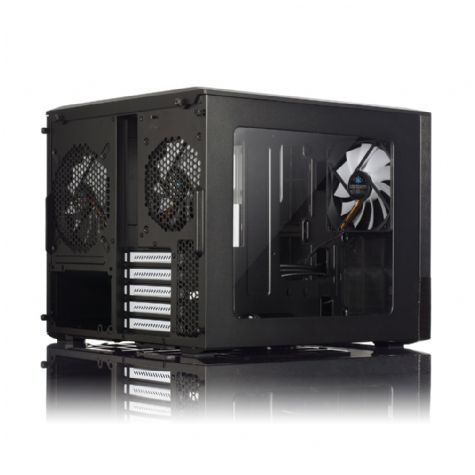

• Featuring a window side panel to show off your set up in style.
• Additional space in the front to mount a slim slot-in ODD, optical bay drive, and 2 x 2.5″ drives.
• Fan controller included.
• Five expansion slots that allows for multiple GPU setups.

Specifications

• Micro ATX and Mini ITX motherboard compatibility
• 8 - 3.5″ HDD positions
• 2 - 2.5″ dedicated SSD unit positions
• 2 - Extra positions for either 3,5″ or 2,5″ drives
• 5 expansion slots
• 1 additional space in the front for Slot-In ODD
• 10 - Fan positions (3 x 120mm Silent Series R2 fans included)
• Filtered fan slots in front, top and bottom

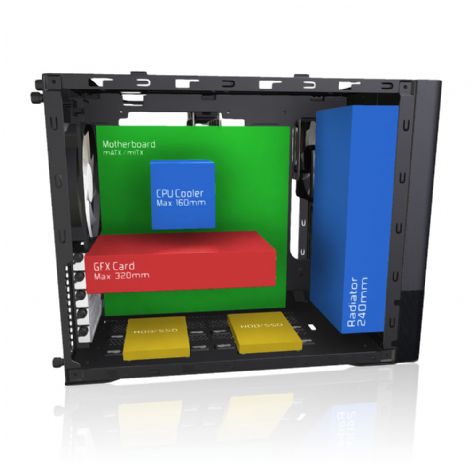

• CPU coolers up to 160 mm in height
• PSU compatibility: ATX PSUs up to 260 mm deep
• Graphics card compatibility: Graphics cards up to 320mm in length. Graphics cards up to 290 mm in length may be installed if a fan is installed in the lower position in the front.
• Velcro strap for easy cable management
• Clear Window side panel included
• Colors available: Black
• Case dimensions (WxHxD): 344 x 307 x 389 mm
• Net weight: 6 kg
• Package dimensions (WxHxD): 370 x 468 x 412 mm
• Package weight: 7.7kg

Cooling system

• Front: 4 – 120mm fans (included is one hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed)
• Rear: 1 - 120/140mm fan (included is a hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed)
• Rear: 1 - 120mm fan slots (included is 1 hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed)
• Top: 4 - 120x140mm fans (not included)
• Fan controller: 1 - Integrated fan controller for up to 3 fans (included)

< Front interface

• 2 - USB 3.0
• Audio in/out
• Power button with LED (blue)
• HDD activity LED (white)

Package contents

• Node 804 computer case
• Accessory box
• User manual
