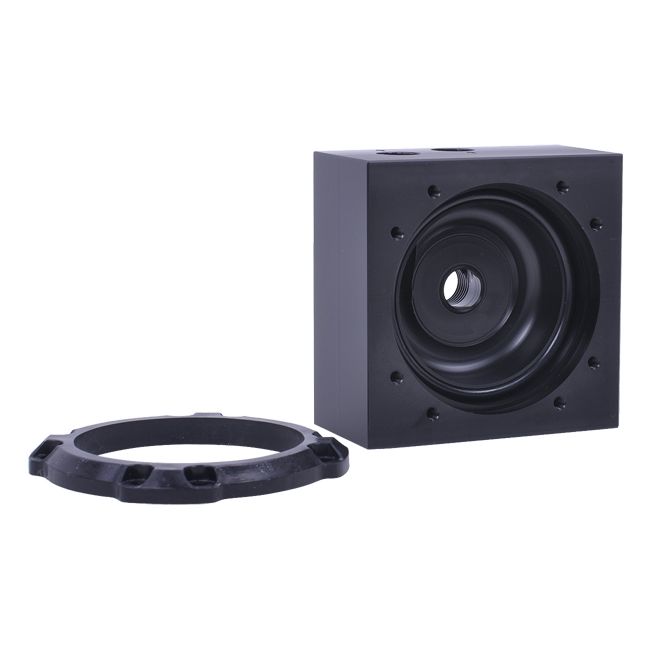

Alphacool HF D5 TOP - Black Acetal G1/4 - (VPP655/TPP644/MCP655) V.2
Levertijd: direct uit voorraad leverbaar. € 27,02
The ultimate top for your Alphacool power pump offers even better performance as well as more mounting and connective possibilities for your favorite pump!
The base performance of the Alphacool TPP & VPP is already truly exceptional, but what if there is a possibility to improve even on that? This idea was also what has driven the developers which have created a product that does not only increase performance but also offers other additional advantages over the base model pump.
One of the greatest advantages are the G1/4” connection threads both at the sides and top of the pump cover. Both can be used separately or even in a combination. For the unused connection threads two knurled copper plated screw plugs are included.
The design is also a factor which was not taken lightly! The elegant black Acetal material with integrated Alphacool logo gives a clue of the potential of the German Know-how in these tops!
Mounting is done quickly and easily. With a simple twisting motion the motor is separated from the mount. After that you will find 4 separated basic components. First pull the O-ring over the polished silver front piece of the pump and then push on the largest of the 4 components. At the back, where the cable is coming out of the case, the counterpiece is pushed on. With the included mounting screws the elements can be tightly connected and you are done!
And what purpose has the last plate? It can be used for mounting of the pump in the case! Simply screw the plate to the pump’s top and the opposite side to the case or decoupling module and you are set to go!
And you will notice: This is yet another great piece of engineering from the Alphacool team!
Technical specifications
Extent of delivery
The base performance of the Alphacool TPP & VPP is already truly exceptional, but what if there is a possibility to improve even on that? This idea was also what has driven the developers which have created a product that does not only increase performance but also offers other additional advantages over the base model pump.
One of the greatest advantages are the G1/4” connection threads both at the sides and top of the pump cover. Both can be used separately or even in a combination. For the unused connection threads two knurled copper plated screw plugs are included.
The design is also a factor which was not taken lightly! The elegant black Acetal material with integrated Alphacool logo gives a clue of the potential of the German Know-how in these tops!
Mounting is done quickly and easily. With a simple twisting motion the motor is separated from the mount. After that you will find 4 separated basic components. First pull the O-ring over the polished silver front piece of the pump and then push on the largest of the 4 components. At the back, where the cable is coming out of the case, the counterpiece is pushed on. With the included mounting screws the elements can be tightly connected and you are done!
And what purpose has the last plate? It can be used for mounting of the pump in the case! Simply screw the plate to the pump’s top and the opposite side to the case or decoupling module and you are set to go!
And you will notice: This is yet another great piece of engineering from the Alphacool team!
Technical specifications
- Material: Acetal
- Color: Black
- Connection thread size: 4x ¼”
- Dimensions mounted (L x W x H): 80 x 45 x 80mm
Extent of delivery

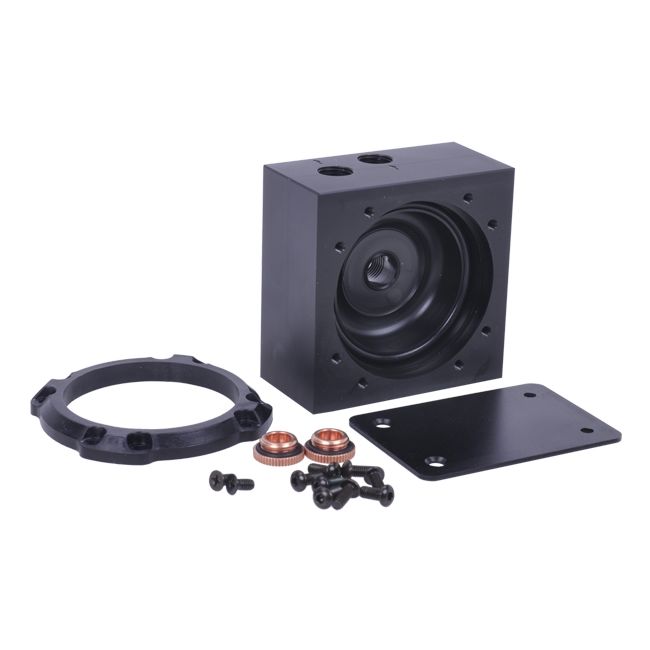

- 1x Alphacool HF D5 TOP - Black Acetal G1/4 - (VPP655/TPP644/MCP655)
- 2x Copper plated screw plugs
- Black mounting screws
