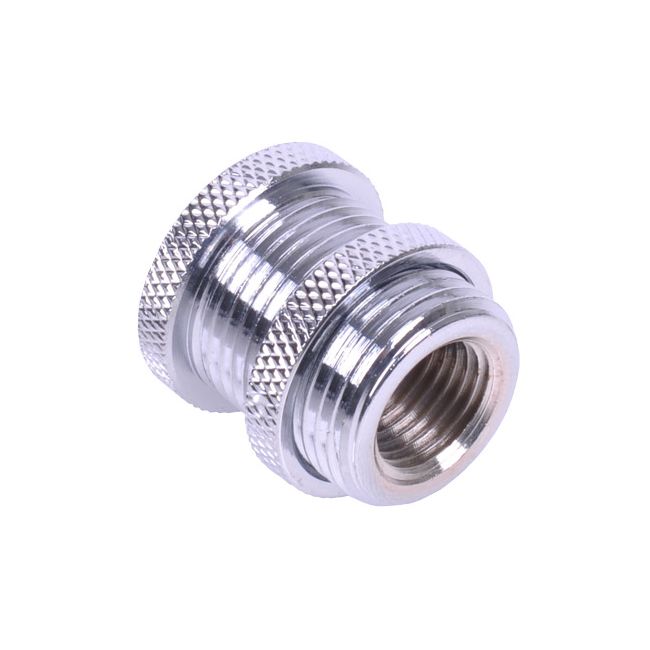

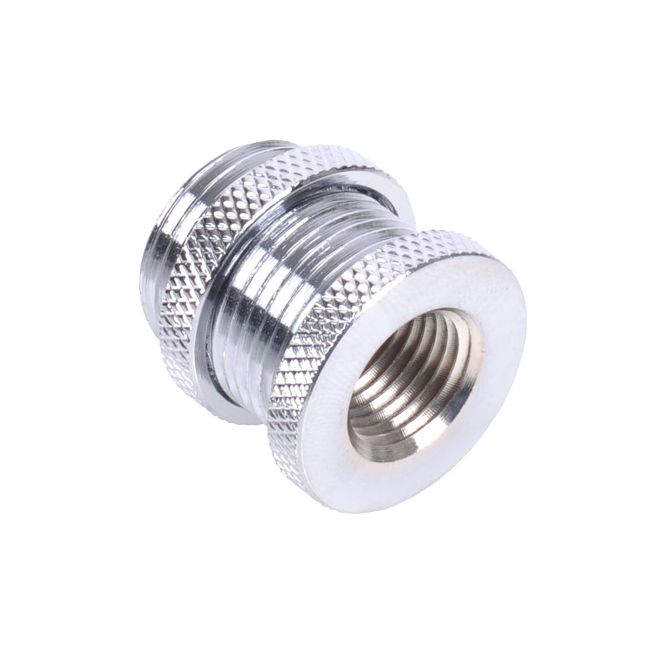

Alphacool bulkhead connector G1/4 - chrome
Levertijd: direct uit voorraad leverbaar. € 6,69
Alphacools's fittings go new ways in looks, quality of manufacturing, colours and choice. The inner diameter of these fittings truly deserves the „high flow“ attribute!
The first three colours, Chrome, Deep Black and Shiny Copper offer something for every taste. The product matching series are designed to look elegant in every system, highlighting the individual design of the computer. The limits are endless with these Alphacool fittings in combination with Alphacool tubing!
With a new process during chromatising the surface finish is completely connected with the brass body, hence ensuring permanent intense colours and peeling of the chrome layer. The Alphacool name in blue lettering on some of the fittings additionally underlines the individuality of these items.
Functionality of this connector:

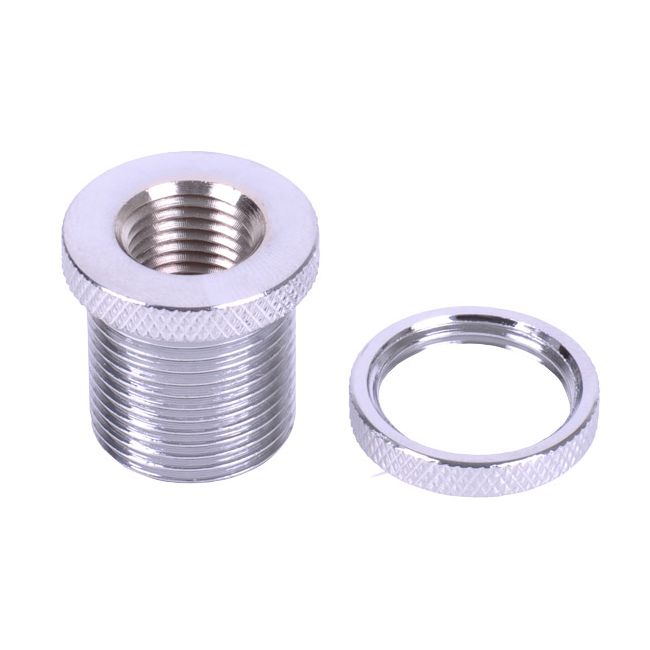

This bulkhead connector is perfect for applications such as looping through of tubing through the back or side of an enclosure with the help of two fittings. The bulkhead connector itself is safely fixated with the counter-nut and the 1/4“ inner threads can then be used to connect two fittings of your choice.
Technical specifications:
Dimensions:
Extent of delivery:
The first three colours, Chrome, Deep Black and Shiny Copper offer something for every taste. The product matching series are designed to look elegant in every system, highlighting the individual design of the computer. The limits are endless with these Alphacool fittings in combination with Alphacool tubing!
With a new process during chromatising the surface finish is completely connected with the brass body, hence ensuring permanent intense colours and peeling of the chrome layer. The Alphacool name in blue lettering on some of the fittings additionally underlines the individuality of these items.
Functionality of this connector:
This bulkhead connector is perfect for applications such as looping through of tubing through the back or side of an enclosure with the help of two fittings. The bulkhead connector itself is safely fixated with the counter-nut and the 1/4“ inner threads can then be used to connect two fittings of your choice.
Technical specifications:
- Material: Brass, chromatized
- Colour: Chrome
Dimensions:
- Length: 24mm
- Width: max 31mm
- Required hole diameter: 20mm
- Key width fixed part: 24mm
- Key width counter nut: 27mm
Extent of delivery:
- 1 x Alphacool HF bulkhead connector G1/4 - Chrome
