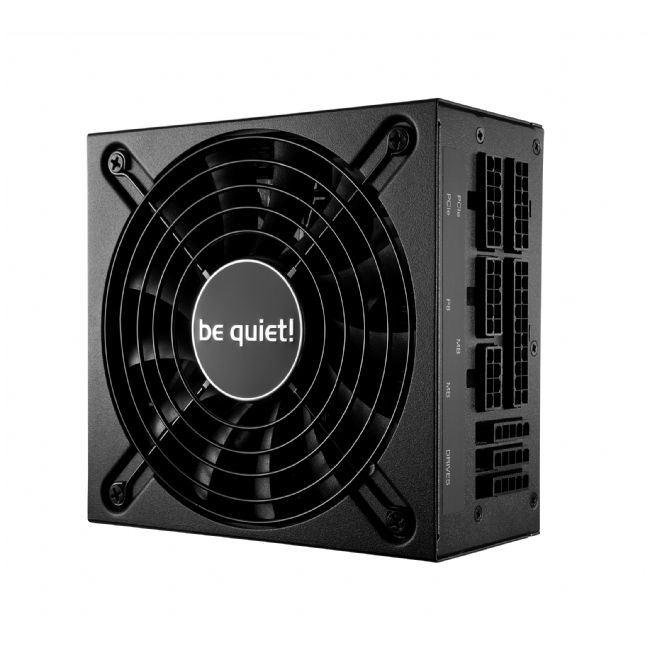

Be Quiet! SFX L Power - 500 Watt
Levertijd: niet voorradig, levertijd onbekend. € 116,63
Compact and Silent Energy
be quiet! SFX L Power 600W is especially recommended for mini ITX PCs and compact gaming systems. It performs well beyond the ordinary, with a great combination of quietness, features, reliability and efficiency.
- 80PLUS® Gold certification with up to 92% power conversion efficiency
- Multi-GPU support with four PCIe connectors
- Full cable management for build flexibility and convenient usage
- Silent, temperature-controlled 120mm high-quality fan
- LLC, Synchronous Rectifier (SR) and DC-to-DC power conversion circuit design supports stability and efficiency
- High-quality Japanese capacitors for maximum reliability and operating life
- Powerful 12V-rail design for high stability and performance
- SFX-to-ATX adapter bracket allows flexible use with larger case sizes
- Black flat cables of up to 80cm for improved cooling
- Full suite of top safety features
- 3-year manufacturer’s warranty
- Product conception, design and quality control in Germany
be quiet! SFX L Power 600W is especially recommended for mini ITX PCs and compact gaming systems. It performs well beyond the ordinary, with a great combination of quietness, features, reliability and efficiency.
- 80PLUS® Gold certification with up to 92% power conversion efficiency
- Multi-GPU support with four PCIe connectors
- Full cable management for build flexibility and convenient usage
- Silent, temperature-controlled 120mm high-quality fan
- LLC, Synchronous Rectifier (SR) and DC-to-DC power conversion circuit design supports stability and efficiency
- High-quality Japanese capacitors for maximum reliability and operating life
- Powerful 12V-rail design for high stability and performance
- SFX-to-ATX adapter bracket allows flexible use with larger case sizes
- Black flat cables of up to 80cm for improved cooling
- Full suite of top safety features
- 3-year manufacturer’s warranty
- Product conception, design and quality control in Germany
| Poorten & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Lengte stroomkabel moederbord | 30 cm |
| Aantal SATA power connectors | 6 |
| Lengte SATA-stroomkabel | 600,800 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Ja |
| Bekabelingstype | Modulair |
| Gewicht en omvang | |
| Breedte | 125 mm |
| Diepte | 130 mm |
| Hoogte | 64 mm |
| Gewicht | 1,16 kg |
| Energie | |
| Totaal vermogen | 600 W |
| AC invoer voltage | 100 - 240 |
| Piekvermogen | 650 W |
| AC invoer frequentie | 50 - 60 |
| Stroom | 10 |
| Power factor | 0,95 |
| Power Factor Correctie (PFC) type | Actief |
| Gecombineerd vermogen (+3.3V) | 105 W |
| Gecombineerd vermogen (+12V) | 600 W |
| Gecombineerd vermogen (+5V) | 105 W |
| Gecombineerd vermogen (-12V) | 3,6 W |
| Gecombineerd vermogen(+5Vsb) | 15 W |
| Max huidige output (+3.3V) | 22 A |
| Max huidige output(+12V) | 50 A |
| Max huidige output (+5V) | 22 A |
| Max huidige output (-12V) | 0,3 A |
| Max huidige output (+5Vsb) | 3 A |
| Efficientie | 92 procent |
| Stroomspanning bescherming | Overstroom, Te hoog vermogen, Overspanning, Oververhitting, Kortsluiting, Onder spanning |
| Technische details | |
| Verbeterd kabelbeheer | Ja |
| Meegeleverde kabels | AC, PCIe, SATA |
| Verpakking | |
| Breedte verpakking | 205 mm |
| Diepte verpakking | 220 mm |
| Hoogte verpakking | 80 mm |
| Gewicht verpakking | 2,04 kg |
| Type verpakking | Doos |
| Certificaten | |
| 80 PLUS certificatie | 80 PLUS Gold |
| Energy Star-certificaat | Ja |
| RoHS compliance | Ja |
| Certificering | CE, CB, TÜV, FCC, cTUVus, RCM |
| Inhoud van de verpakking | |
| Kabelbinders inbegrepen | Ja |
| Inclusief schroeven | Ja |
| Gebruikershandleiding | Ja |
| Koeling | |
| Ventilator diameter | 12 cm |
| Aantal ventilatoren | 1 ventilator(en) |
| Design | |
| Kleur van het product | Zwart |
| Prestatie | |
| Bedoeld voor | PC |
| Vormfactor van de voeding (PSU) | SFX |
| ATX version | 2.4 |
| Geluidsniveau (stille modus, <30%) | 9,9 dB |
| Geluidsniveau (stille modus, 50%) | 14,5 dB |
| Geluidsniveau (volle belastingmode, 100%) | 28,7 dB |
| Bearing technologie | Hoes |
| Aan/uitschakelaar | Ja |
| Mean time between failures (MTBF) | 100000 uur |
