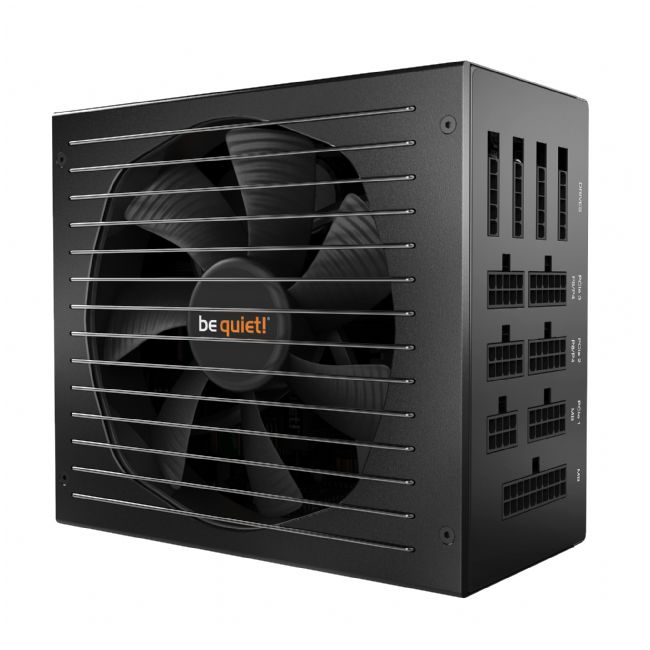

Be Quiet! Straight Power 11 - 850 Watt
Levertijd: direct uit voorraad leverbaar. € 159,68
World Class Quiet and Efficiency
be quiet! Straight Power 11 850W raises the bar for systems that demand virtually inaudible operation without power quality compromises. This PSU is clearly the best choice for super silent systems.
- Virtually inaudible operation thanks to a SilentWings® 3 135mm fan
- Big funnel-shaped fan opening of the PSU case for high airflow intake
- Wire-free on the DC side inside the PSU for enhanced cooling and longevity
- Full cable management for maximum build flexibility
- 80PLUS® Gold certification with an efficiency of up to 93%
- Advanced stability and voltage regulation thanks to LLC, SR and DC-to-DC
- Four high-performance 12V-rails
- Powerful multi-GPU support with four PCI-Express connectors
- Japanese 105°C-rated capacitors ensure stability and reliability
- Power signal stability unmatched in its class
- ErP and Energy Star 6.1 ready
- 5-year manufacturer’s warranty
- Product conception, design and quality control in Germany
- Virtually inaudible SilentWings® 3 135mm fan
- Wire-free design inside the PSU
- 80PLUS® Gold efficiency of up to 93%
- Convenient full cable management
be quiet! Straight Power 11 850W raises the bar for systems that demand virtually inaudible operation without power quality compromises. This PSU is clearly the best choice for super silent systems.
- Virtually inaudible operation thanks to a SilentWings® 3 135mm fan
- Big funnel-shaped fan opening of the PSU case for high airflow intake
- Wire-free on the DC side inside the PSU for enhanced cooling and longevity
- Full cable management for maximum build flexibility
- 80PLUS® Gold certification with an efficiency of up to 93%
- Advanced stability and voltage regulation thanks to LLC, SR and DC-to-DC
- Four high-performance 12V-rails
- Powerful multi-GPU support with four PCI-Express connectors
- Japanese 105°C-rated capacitors ensure stability and reliability
- Power signal stability unmatched in its class
- ErP and Energy Star 6.1 ready
- 5-year manufacturer’s warranty
- Product conception, design and quality control in Germany
- Virtually inaudible SilentWings® 3 135mm fan
- Wire-free design inside the PSU
- 80PLUS® Gold efficiency of up to 93%
- Convenient full cable management
| Poorten & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Lengte stroomkabel moederbord | 60 cm |
| Aantal SATA power connectors | 11 |
| Aantal PATA power aansluiters | 4 |
| Lengte SATA-stroomkabel | 550 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| Lengte PCI Express-stroomkabel | 60 cm |
| CPU power connector (4+4 pin) | Ja |
| Lengte CPU-stroomkabel | 70 cm |
| Aansluiting voor diskettestation | Ja |
| Bekabelingstype | Modulair |
| Gewicht en omvang | |
| Breedte | 150 mm |
| Diepte | 170 mm |
| Hoogte | 86 mm |
| Gewicht | 1,8 kg |
| Energie | |
| Totaal vermogen | 850 W |
| AC invoer voltage | 100 - 240 |
| Piekvermogen | 920 W |
| AC invoer frequentie | 50 - 60 |
| Stroom | 10 |
| Power factor | 0,99 |
| Power Factor Correctie (PFC) type | Actief |
| Gecombineerd vermogen (+3.3V) | 150 W |
| Gecombineerd vermogen (+12V) | 849,6 W |
| Gecombineerd vermogen (+5V) | 150 W |
| Gecombineerd vermogen (-12V) | 6 W |
| Gecombineerd vermogen(+5Vsb) | 15 W |
| Max huidige output (+3.3V) | 25 A |
| Max output current (+12V1) | 21 A |
| Max output current (+12V2) | 21 A |
| Max output current (+12V3) | 26 A |
| Max output current (+12V4) | 26 A |
| Max huidige output (+5V) | 25 A |
| Max huidige output (-12V) | 0,5 A |
| Max huidige output (+5Vsb) | 3 A |
| Houd-tijd | 21,1 ms |
| Efficientie | 93 procent |
| Stroomspanning bescherming | Overstroom, Te hoog vermogen, Overspanning, Oververhitting, Kortsluiting, Onder spanning |
| Technische details | |
| Verbeterd kabelbeheer | Ja |
| Verpakking | |
| Breedte verpakking | 248 mm |
| Diepte verpakking | 328 mm |
| Hoogte verpakking | 102 mm |
| Gewicht verpakking | 3,38 kg |
| Certificaten | |
| 80 PLUS certificatie | 80 PLUS Gold |
| Energy Star-certificaat | Ja |
| RoHS compliance | Ja |
| Certificering | CE, FCC, TÜV, cTUVus, RCM, BSMI, CU |
| Inhoud van de verpakking | |
| Kabelbinders inbegrepen | Ja |
| Inclusief schroeven | Ja |
| Gebruikershandleiding | Ja |
| Koeling | |
| Ventilator diameter | 13,5 cm |
| Aantal ventilatoren | 1 ventilator(en) |
| Design | |
| Kleur van het product | Zwart |
| Belichting | Nee |
| Prestatie | |
| Bedoeld voor | PC |
| Vormfactor van de voeding (PSU) | ATX |
| ATX version | 2.4 |
| EPS version | 2.92 |
| Stille modus | Ja |
| Geluidsniveau (stille modus, <30%) | 9,71 dB |
| Geluidsniveau (stille modus, 50%) | 10,61 dB |
| Geluidsniveau (volle belastingmode, 100%) | 24,98 dB |
| Bearing technologie | FDB |
| Aan/uitschakelaar | Ja |
