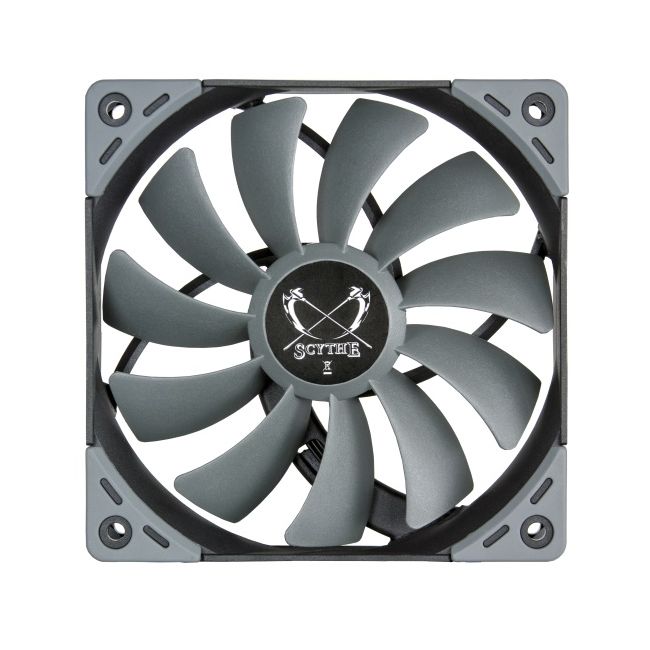

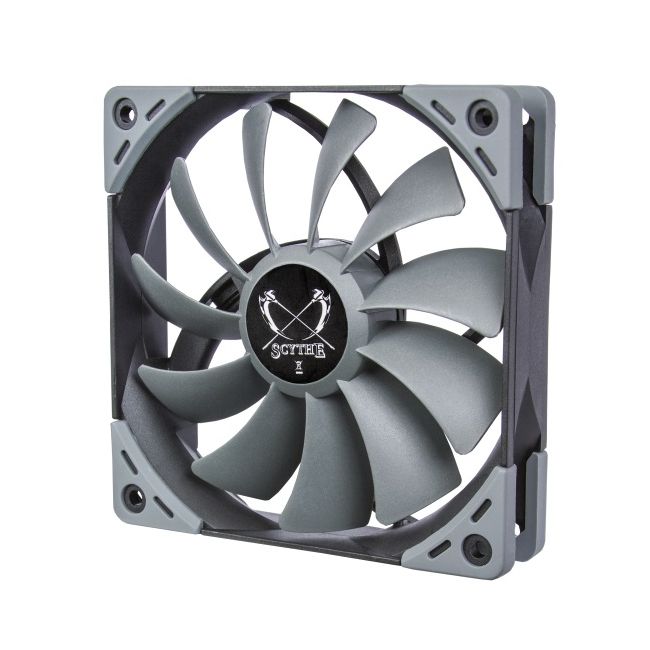

Scythe Kaze Flex 120 SU1225FD12L-RD - 120 x 120 x 27 mm.
Levertijd: direct uit voorraad leverbaar. € 11,48
Based on the highly praised Kaze Flex PWM fans, which are bundled with the award-winning Mugen 5 CPU cooler, a complete series with three models with different speed options is now available. The sealed fluid dynamic bearing (Sealed Precision FDB) ensures an average life-span of more than 120.000 hours. Decouplers attached to the fan frame reduce the transmission of vibrations and thus contribute to a very low noise level.
Sealed Precision FDB
In order to guarantee an exceptionally high level of stability and durability, the fans from the Kaze Flex Series are equipped with a self-contained fluid dynamic bearing (Sealed Precision FDB). The bearing and the spindle are made entirely of high quality compressed metal and lubricated by a special oil film resistant to temperatures of up to 250C° / 480F°. This drastically reduces friction, ensuring smooth operation and minimized wear, which results in an average life-span of 120 000 hours.
Integrated Anti-Vibration Sytem

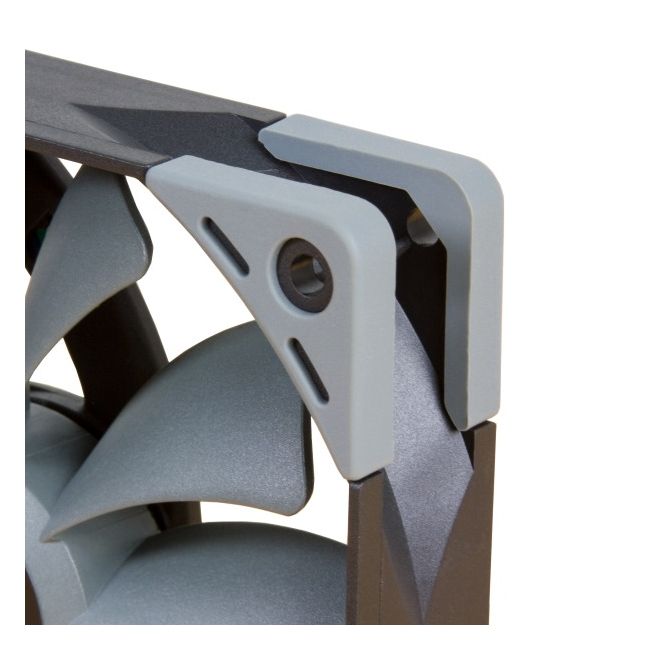

The Kaze Flex fan series is equipped with vibration- and shock absorbing rubber pads which cover the tunnelless mounting holes. These decouplers effectively eliminate possible vibrations and allow low-noise operation.
Versatile Applications

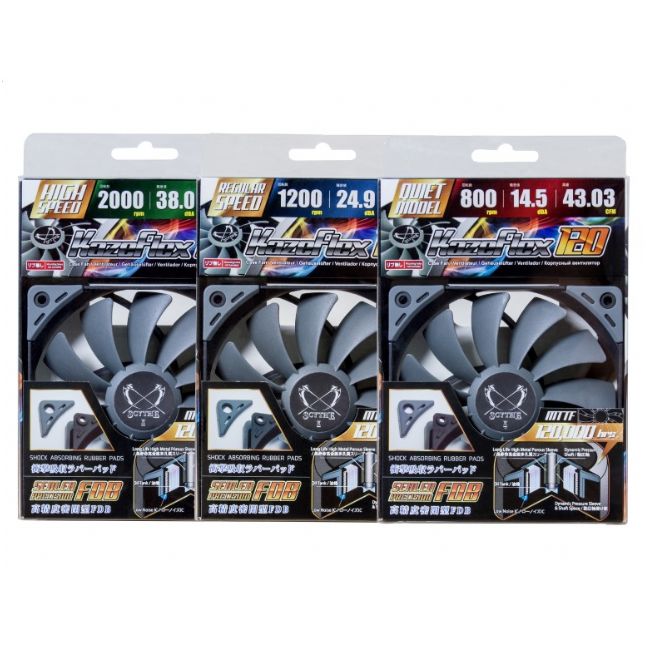

The Kaze Flex fans are available in several models with different speeds and offer an individual solution for every purpose.
More Features

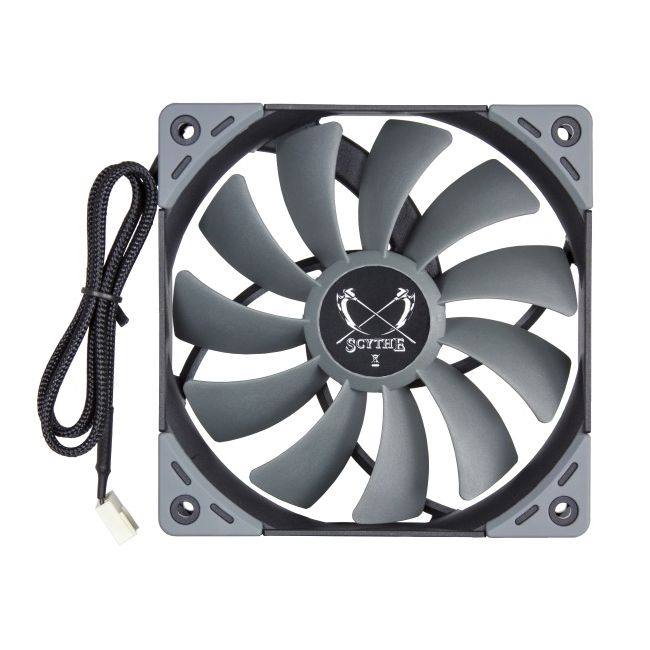

A 50 cm / 19.68 inch long sleeved cable as well as an adapter for direct connection to the power supply, allows installation in most system layouts.
Specifications
Voordelige verzending in beschermenvelop mogelijk!
Sealed Precision FDB
In order to guarantee an exceptionally high level of stability and durability, the fans from the Kaze Flex Series are equipped with a self-contained fluid dynamic bearing (Sealed Precision FDB). The bearing and the spindle are made entirely of high quality compressed metal and lubricated by a special oil film resistant to temperatures of up to 250C° / 480F°. This drastically reduces friction, ensuring smooth operation and minimized wear, which results in an average life-span of 120 000 hours.
Integrated Anti-Vibration Sytem
The Kaze Flex fan series is equipped with vibration- and shock absorbing rubber pads which cover the tunnelless mounting holes. These decouplers effectively eliminate possible vibrations and allow low-noise operation.
Versatile Applications
The Kaze Flex fans are available in several models with different speeds and offer an individual solution for every purpose.
More Features
A 50 cm / 19.68 inch long sleeved cable as well as an adapter for direct connection to the power supply, allows installation in most system layouts.
Specifications
- Model Name: Kaze Flex 120 Case Fan
- Model-Nr.: SU1225FD12L-RD
- Dimensions: 120 x 120 x 27 mm
- Fan Speed: 800 rpm
- Noise Level: 14,5 dBA
- Airflow: 43,03 CFM = 73,1 m³/h
- Static Pressure: 0,49 mmH²O / 4,8 Pa
- Voltage: 12 V
- Amperage: 0,09 A
- Power Input: 1,08 W
- Weight: 140 g
- Connector: 3-pin

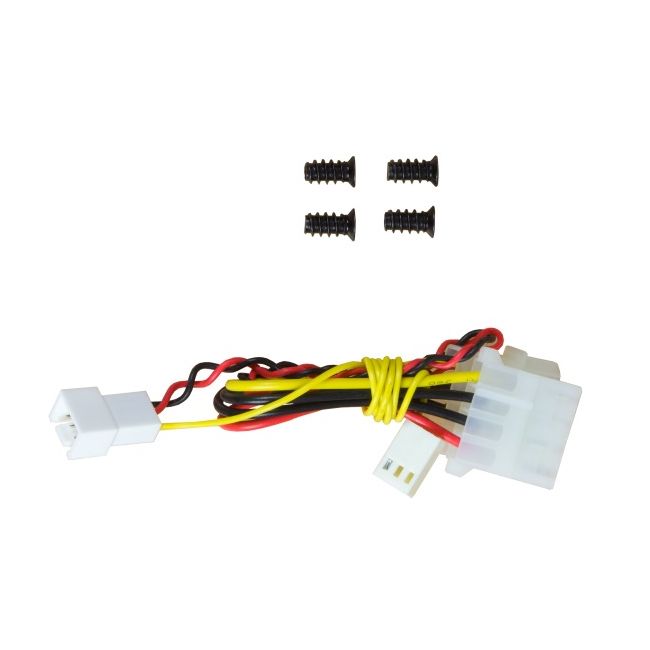

- Accessory: Molex-Adaptor, 4x screws,
- Bearing: Sealed Precision Fluid Bearing
- MTTF: 120.000 Hours (25°C)
