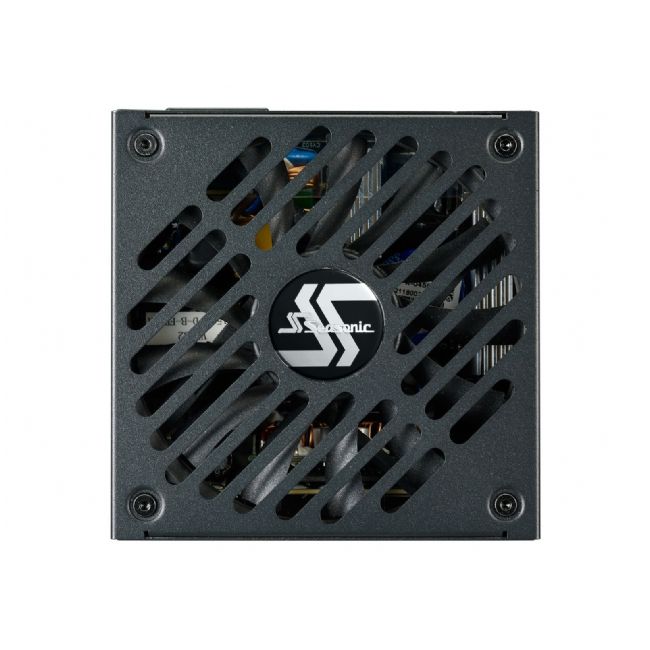

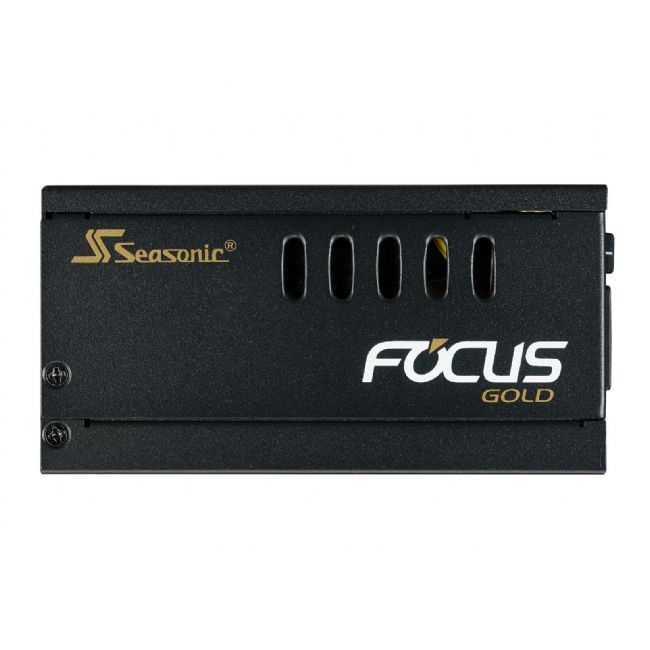

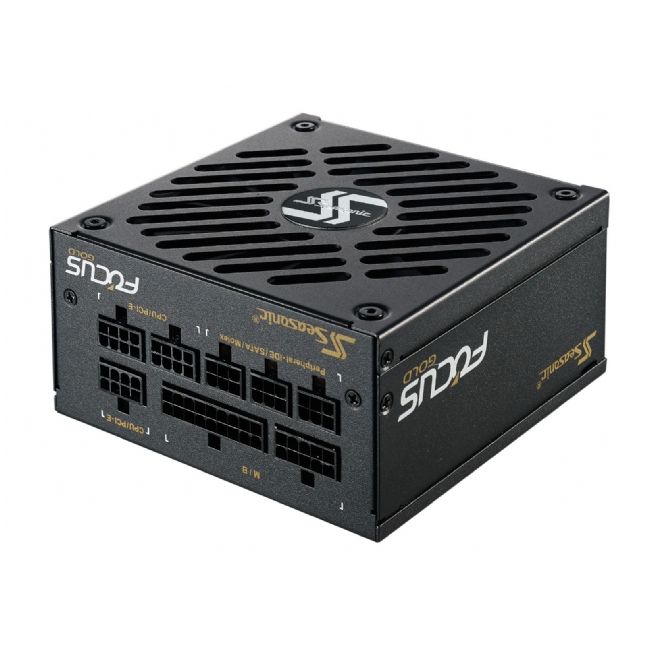

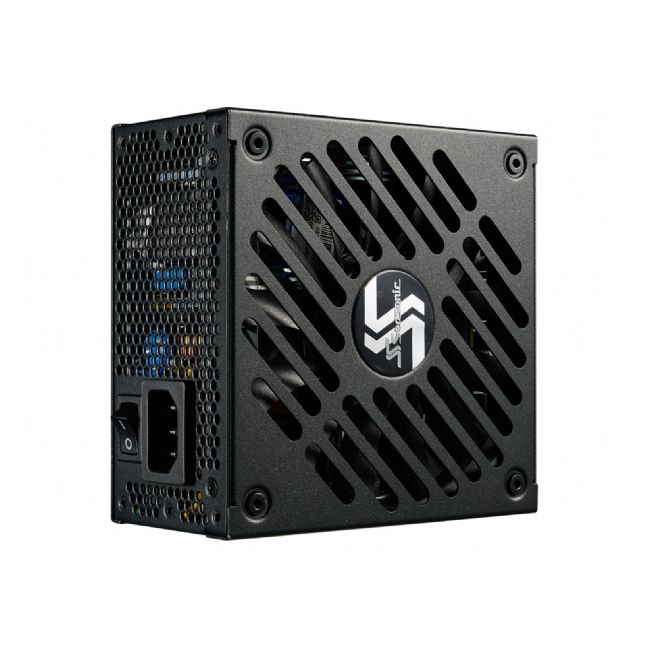

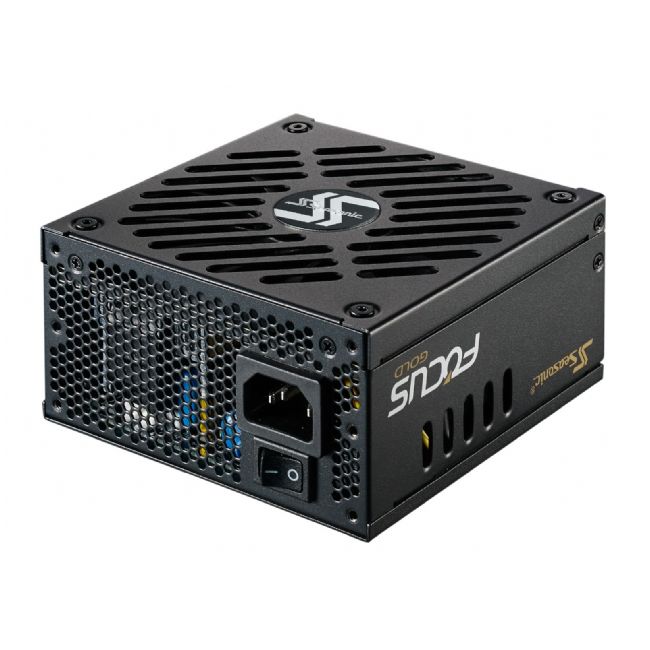

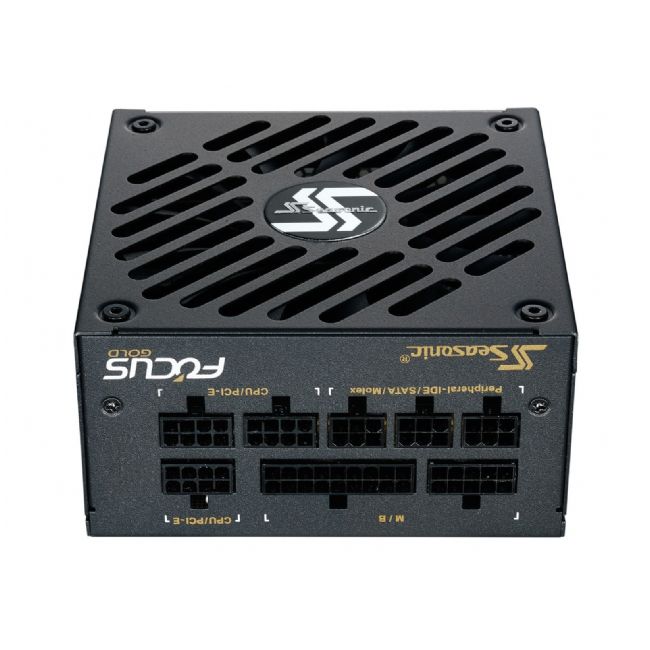

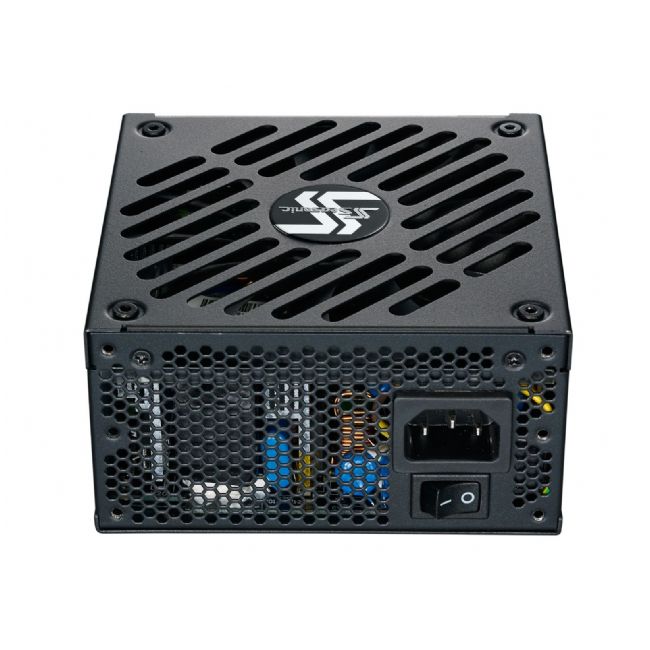

Seasonic Focus SGX SSR-650SGX - 650 Watt

The long-awaited new line of Seasonic's FOCUS SGX is versatile in its application, and powerful with a small footprint. The FOCUS SGX is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.

Technical Specifications

• 80PLUSŪ: Gold
• Form Factor: Intel SFX 12 V / ATX 12 V
• Dimensions: 125 mm (W) x 125 mm (L) x 63.5 mm (H)
• Fan Size 120 mm
• Fan Control: Premium Hybrid Fan Control
• Fan Bearing: Fluid Dynamic Bearing
• Life Expectancy: 50,000 hours at 40 °C, 15 % - 65 % RH
• Modularity: Fully Modular
• Cable type: Flat black cables
• AC Input: Full Range
• Protection: OPP, OVP, UVP, OCP, OTP, SCP

Power Output

• +3,3 V: 20A
• +5V: 20A
• +12V: 54A
• -12V: 0,3A
• +5VSB: 3A
