Jonsbo UMX3 Window - zilver
Levertijd: voorradig bij leverancier, levertijd 1 tot 5 werkdagen. € 119,94
The UMX3 offers an outstanding and innovative design. Of course, only the highest quality components are used in order to offer a truly impressive case:

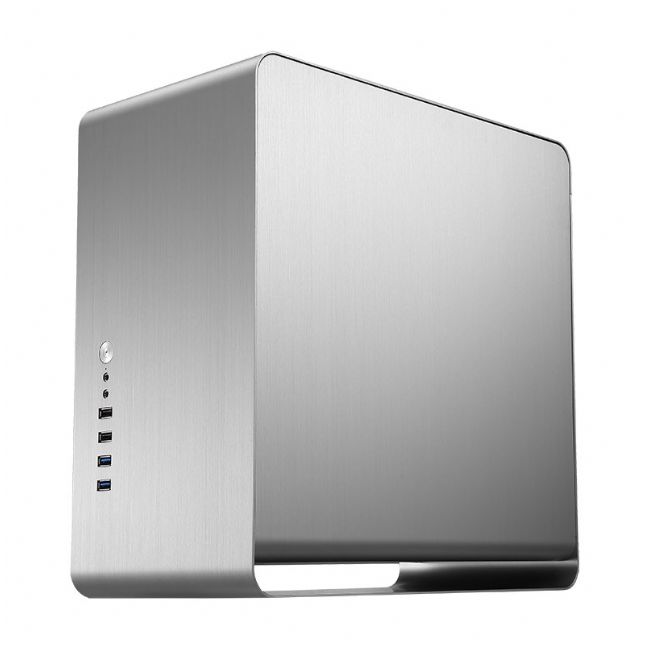

The compact Micro-ATX case combines a steel chassis for maximum stability with an extravagant exterior designed in brushed aluminum. The design of the sleek aluminum casing is both elegant and functional. A design highlight of the case is without a doubt the peppy designed "case foot." Between the bottom of the chassis and the "foot" is a 3.5 cm high recess. One advantage of this type: Air inlets in the floor allow ideal air exchange.

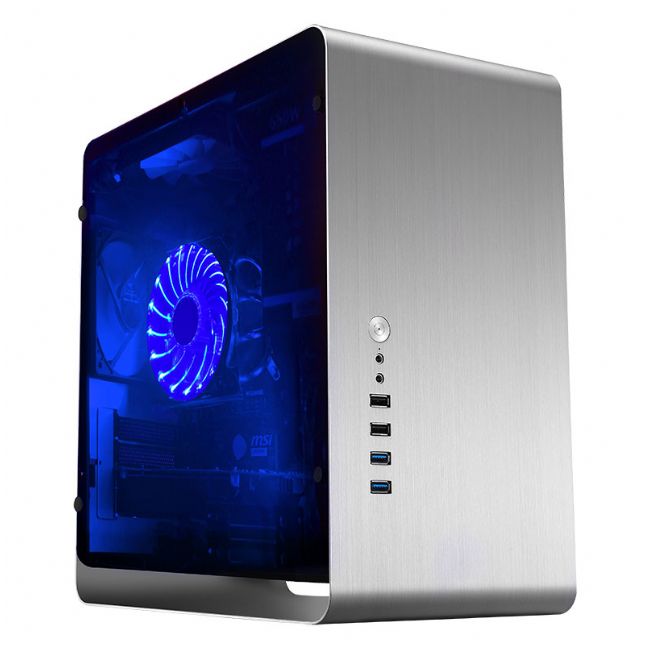

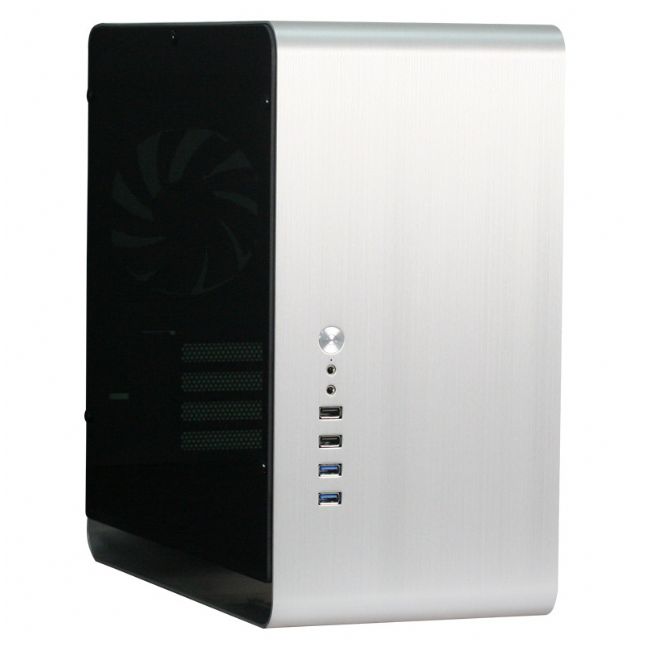

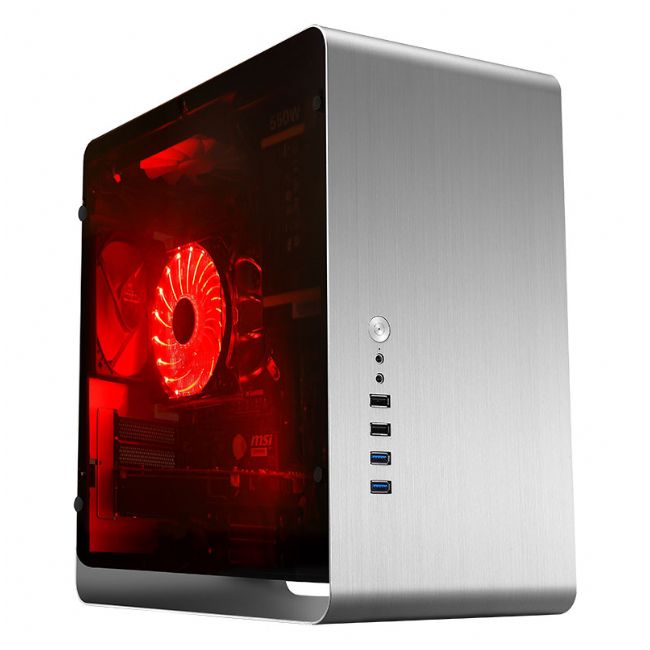

This version offers a high-quality tempered glass window in the left side panel; a special optical highlight for all hardware enthusiasts who enjoy the view at the inner workings of their case.
Thanks to specially decoupled side panels the UMX3 is also very quiet during operation. The side panels rest on a specially designed silicone pad, optimally absorbing the vibrations that may incur.
The chassis of the UMX3 is made of high quality, made of 1.0 - 1.2 mm thick SGCC steel and gives the case maximum stability. A 2.0 mm thick aluminum panel encloses the chassis. The brushed aluminum is of the highest quality and gives the UMX1 a particularly attractive appearance.

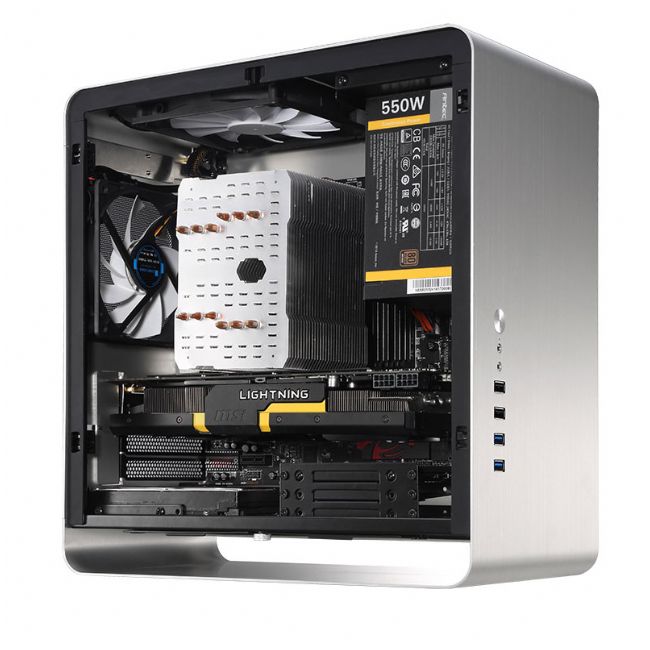

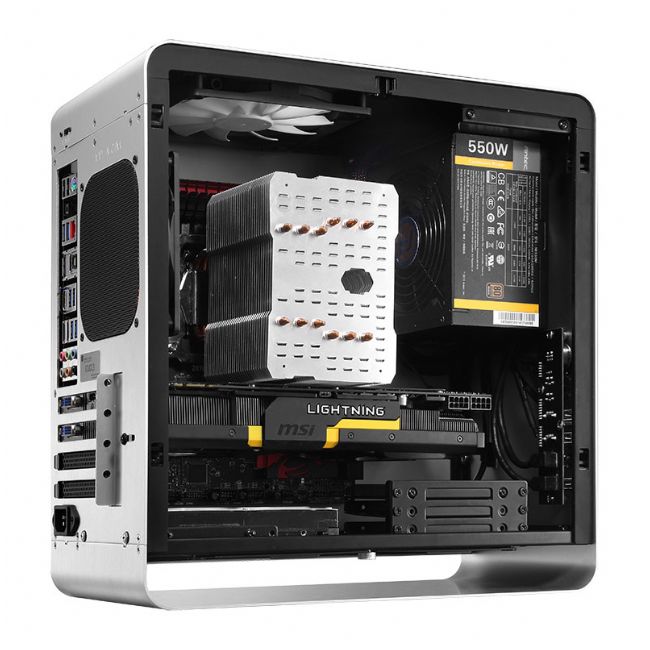

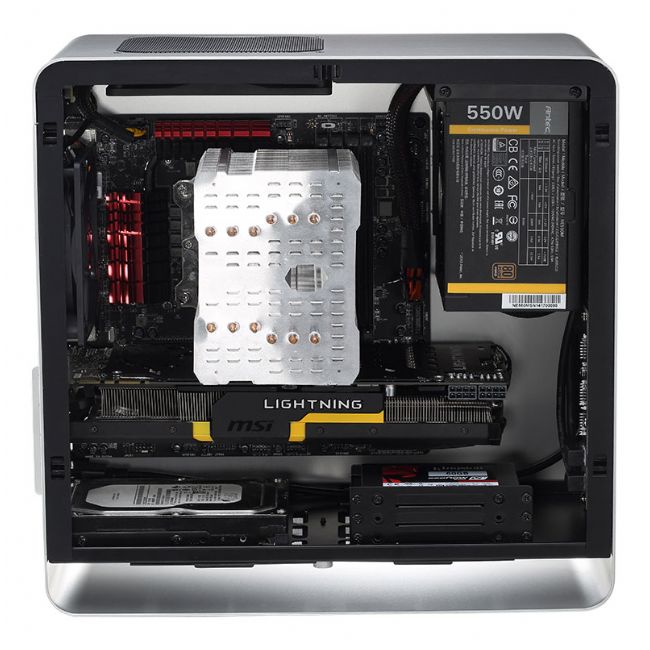

The interior of the UMX3 offers a simple and functional design. The UMX3 can be equipped with ATX power supplies. Above the power supply a Micro-ATX or ITX motherboard can be mounted. Despite the minimalist dimensions users can install tower cooler with a maximum mounting height of 163 mm in the UMX3.

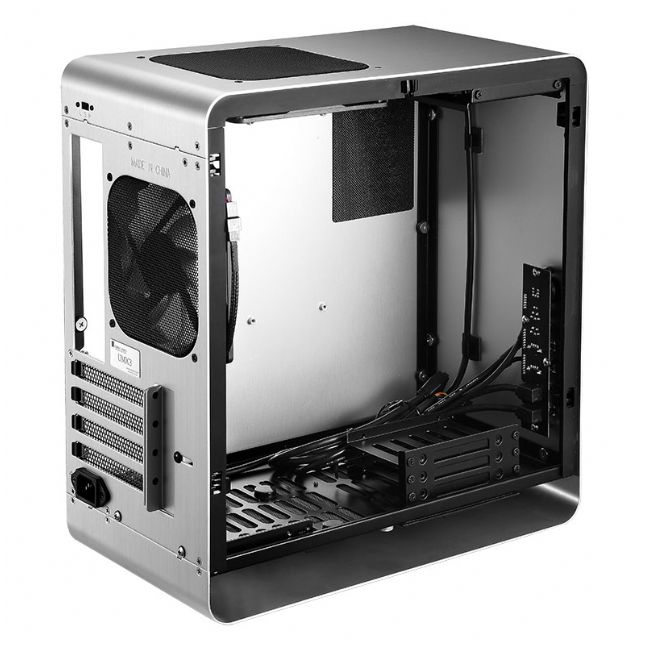

One 3.5 inch and three 2.5 inch drives or four 2.5 inch HDD/SSD can be installed at the bottom of the case.

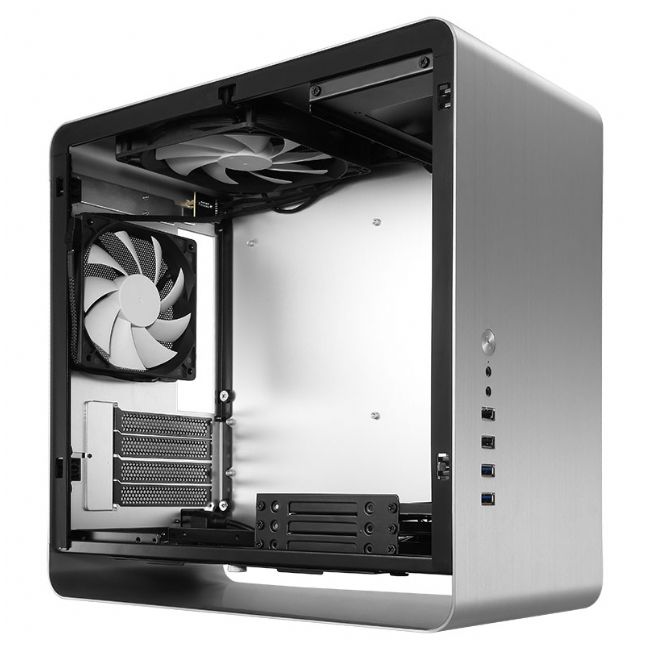

The ventilation system of the UMX3 is designed to minimize noise while ensuring the best possible cooling. A 140 mm and a 120 mm fan are already pre-installed and provide the continuous removal of the generated heat from the interior.
Dust filters under the bottom ensure that dust stays on the outside of the case. They can be easily removed and cleaned.

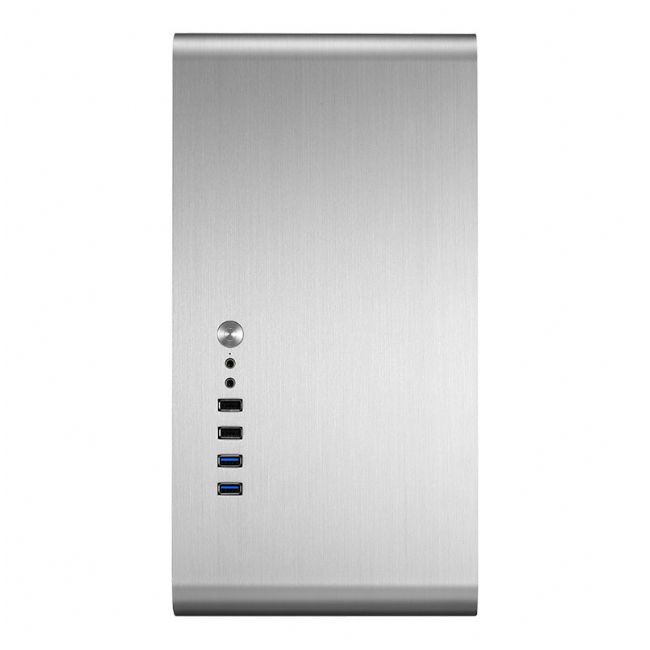

Two USB 3.0 and two USB 2.0 connectors are available externally. Thus, external hard disk or USB drives can be connected quickly and easily.
Depicted hardware is not included.
Technical data
The compact Micro-ATX case combines a steel chassis for maximum stability with an extravagant exterior designed in brushed aluminum. The design of the sleek aluminum casing is both elegant and functional. A design highlight of the case is without a doubt the peppy designed "case foot." Between the bottom of the chassis and the "foot" is a 3.5 cm high recess. One advantage of this type: Air inlets in the floor allow ideal air exchange.
This version offers a high-quality tempered glass window in the left side panel; a special optical highlight for all hardware enthusiasts who enjoy the view at the inner workings of their case.
Thanks to specially decoupled side panels the UMX3 is also very quiet during operation. The side panels rest on a specially designed silicone pad, optimally absorbing the vibrations that may incur.
The chassis of the UMX3 is made of high quality, made of 1.0 - 1.2 mm thick SGCC steel and gives the case maximum stability. A 2.0 mm thick aluminum panel encloses the chassis. The brushed aluminum is of the highest quality and gives the UMX1 a particularly attractive appearance.
The interior of the UMX3 offers a simple and functional design. The UMX3 can be equipped with ATX power supplies. Above the power supply a Micro-ATX or ITX motherboard can be mounted. Despite the minimalist dimensions users can install tower cooler with a maximum mounting height of 163 mm in the UMX3.
One 3.5 inch and three 2.5 inch drives or four 2.5 inch HDD/SSD can be installed at the bottom of the case.
The ventilation system of the UMX3 is designed to minimize noise while ensuring the best possible cooling. A 140 mm and a 120 mm fan are already pre-installed and provide the continuous removal of the generated heat from the interior.
Dust filters under the bottom ensure that dust stays on the outside of the case. They can be easily removed and cleaned.
Two USB 3.0 and two USB 2.0 connectors are available externally. Thus, external hard disk or USB drives can be connected quickly and easily.
Depicted hardware is not included.
Technical data
- Case Type: Compact Micro-ATX Tower
- Form Factor: Micro-ATX, ITX
- 3,5" drive bay internal: 1 x
- 2,5" drive bay internal: max. 4 x
- Case fan (top): 1 x 140 mm
- Case fan (back): 1 x 120 mm
- Height x Width x Depth: 365 x 188 x 358 mm
- Weight: 4,15 kg
- Material: Aluminium, steel
- Maximum lenght of VGA cards: 320 mm
- Maximum height of CPU coolers: 163 mm
- Maximum lenght of PSU: 160 mm
