Jonsbo UMX4 - zwart
Levertijd: voorradig bij leverancier, levertijd 1 tot 5 werkdagen. € 149,57
Jonsbo remains faithful with the elegant design of the UMX4 to its casing series and offers a true “Battleship” for ATX users.
As a revised version of the UMX2, the UMX4 combines a steel chassis for maximum stability with an extravagant exterior designed in brushed aluminum. The design of the sleek aluminum casing is both elegant and functional.
The fine curves of the UMX4 automatically draw attention to itself. A design highlight of the case is without a doubt the peppy designed "case foot." Between the bottom of the chassis and the "foot" is a 6.5 cm high recess. One advantage of this type: The internally mounted fans can effortlessly suck in fresh air for optimum cooling of the system.
Thanks to specially decoupled side panels the UMX4 is also very quiet during operation. The side panels rest on a specially designed silicone pad, optimally absorbing the vibrations that may incur.
The chassis of the UMX4 is made of high quality 1.0 mm thick SGCC steel and gives the case maximum stability. A 2.0 mm thick aluminum panel encloses the chassis. The brushed aluminum is of the highest quality and gives the UMX4 a particularly attractive appearance.

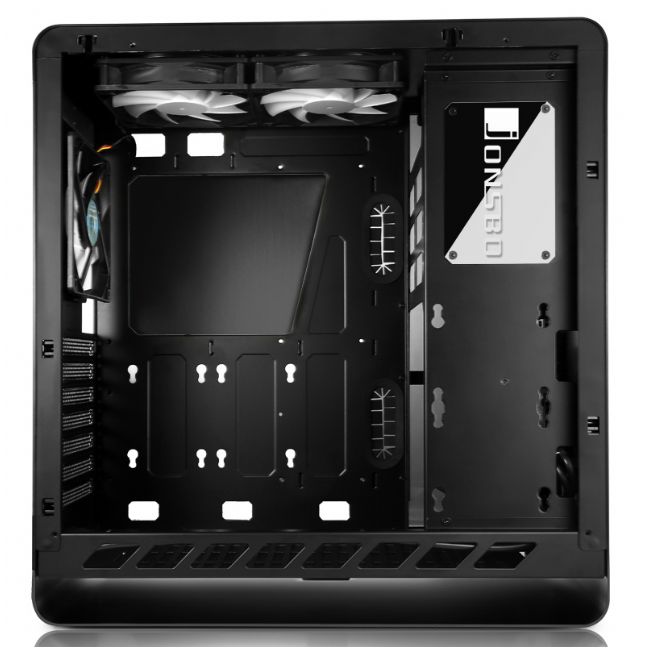

The interior of the UMX4 has been designed to be as innovative as the exterior. The power supply is installed in a specially designed frame behind the front panel to safe space – an extensive cable management system permits a clean installation of the cable. The power connector is located at its usual place at the rear of the case; a corresponding loop cable of the current is pre-installed.
The HDD-cage is located above the PSU, which can accommodate up to two 3.5 inch drives – of course anti-vibration mounted. The hard drives are simply fitted with specially designed screws with anti-vibration rubber and inserted into the drive bays. Additionally four 2.5 inch HDD/SSD can be mounted to the back of the motherboard tray.

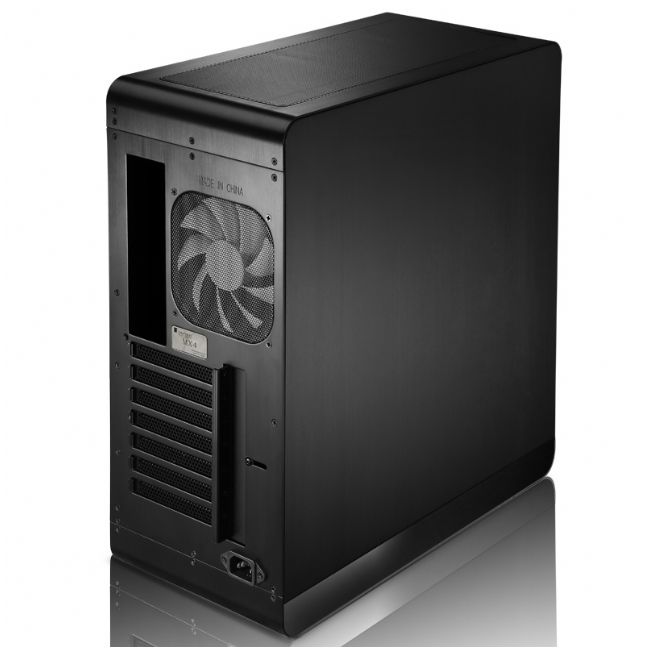

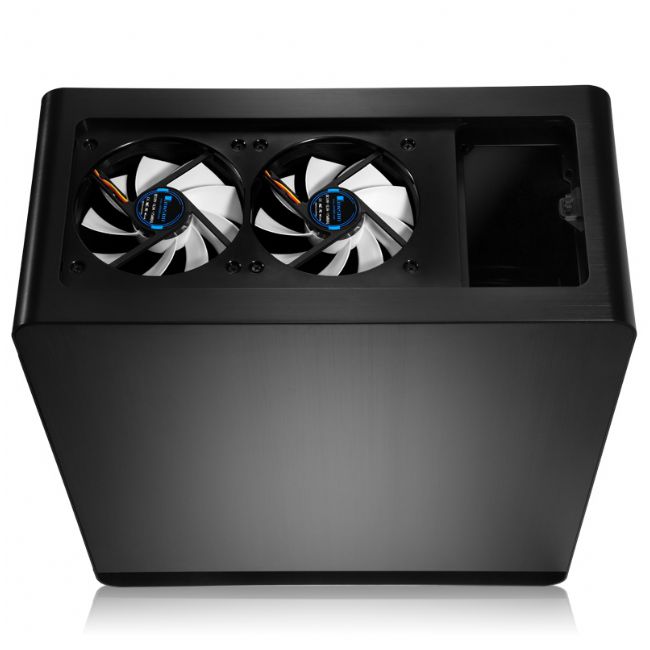

The ventilation system of the UMX4 receives through 2 x 120 mm fans an additionally cooling effect, which continuously removes the heat generated from the interior. The aesthetics of the case stays intact by a suitable cover. At the rear of the UMX4, a 120 mm fan is installed, in order to suck in cool air from the outside. Please keep in mind that the fan of the CPU cooler has to be in the same running direction as the casing fans. Additionally you can also install two 120 mm fans at the bottom of the case.
The UMX4 supports also a 240 mm water cooling system, which can be installed at the bottom of the case. Please check first that there will be no complications with the mainboard, before you build in such a radiator.
A dust filter under the bottom of the case prevent dust from entering the interior.

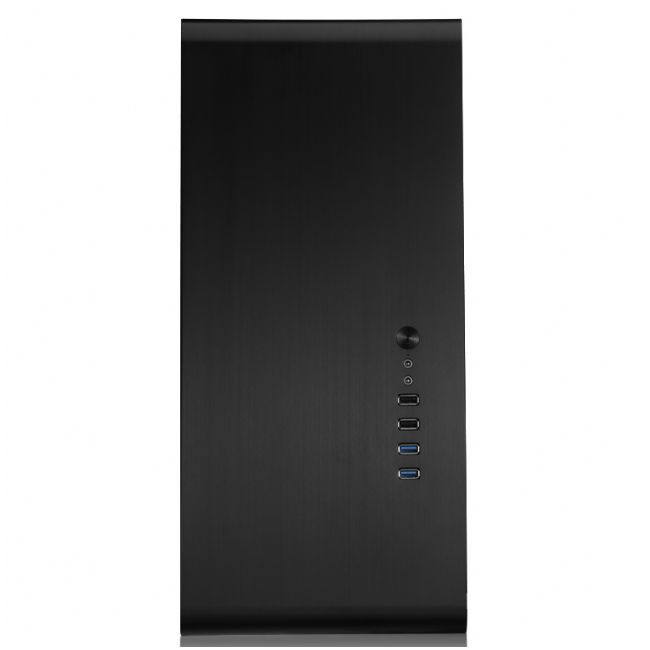

Two USB 3.0 and two USB 2.0 connectors are available externally. Thus, external hard disk or USB drives can be connected quickly and easily.
In addition, an innovative illuminated nameplate is provided, which the user can adjust at will.
Depicted hardware is not included.
Technical data
As a revised version of the UMX2, the UMX4 combines a steel chassis for maximum stability with an extravagant exterior designed in brushed aluminum. The design of the sleek aluminum casing is both elegant and functional.
The fine curves of the UMX4 automatically draw attention to itself. A design highlight of the case is without a doubt the peppy designed "case foot." Between the bottom of the chassis and the "foot" is a 6.5 cm high recess. One advantage of this type: The internally mounted fans can effortlessly suck in fresh air for optimum cooling of the system.
Thanks to specially decoupled side panels the UMX4 is also very quiet during operation. The side panels rest on a specially designed silicone pad, optimally absorbing the vibrations that may incur.
The chassis of the UMX4 is made of high quality 1.0 mm thick SGCC steel and gives the case maximum stability. A 2.0 mm thick aluminum panel encloses the chassis. The brushed aluminum is of the highest quality and gives the UMX4 a particularly attractive appearance.
The interior of the UMX4 has been designed to be as innovative as the exterior. The power supply is installed in a specially designed frame behind the front panel to safe space – an extensive cable management system permits a clean installation of the cable. The power connector is located at its usual place at the rear of the case; a corresponding loop cable of the current is pre-installed.
The HDD-cage is located above the PSU, which can accommodate up to two 3.5 inch drives – of course anti-vibration mounted. The hard drives are simply fitted with specially designed screws with anti-vibration rubber and inserted into the drive bays. Additionally four 2.5 inch HDD/SSD can be mounted to the back of the motherboard tray.
The ventilation system of the UMX4 receives through 2 x 120 mm fans an additionally cooling effect, which continuously removes the heat generated from the interior. The aesthetics of the case stays intact by a suitable cover. At the rear of the UMX4, a 120 mm fan is installed, in order to suck in cool air from the outside. Please keep in mind that the fan of the CPU cooler has to be in the same running direction as the casing fans. Additionally you can also install two 120 mm fans at the bottom of the case.
The UMX4 supports also a 240 mm water cooling system, which can be installed at the bottom of the case. Please check first that there will be no complications with the mainboard, before you build in such a radiator.
A dust filter under the bottom of the case prevent dust from entering the interior.
Two USB 3.0 and two USB 2.0 connectors are available externally. Thus, external hard disk or USB drives can be connected quickly and easily.
In addition, an innovative illuminated nameplate is provided, which the user can adjust at will.
Depicted hardware is not included.
Technical data
- Case Type: Compact Midi Tower
- Form Factor: ATX, MATX, ITX
- 3.5 inch drive bay internal: 2 x
- 2,5 inch drive bay internal: 4 x
- Case fan (rear): 1 x 120 mm
- Case fan (top): 2 x 120 mm
- Case fan (bottom): opt. 2 x 120 mm
- Height x Width x Depth: 437 x 204 x 426 mm
- Weight: 7,1 kg
- Material: Aluminium, steel
- Maximum VGA Card Length: 310 mm
- Maximum height of CPU coolers: 162 mm
