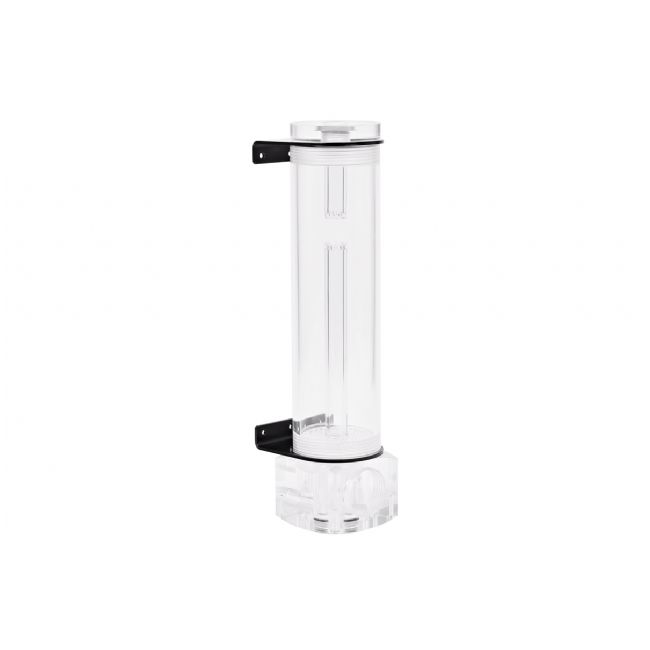

Alphacool Eisbecher Lighttower All-in-One 250mm Plexi reservoir
Levertijd: direct uit voorraad leverbaar. € 42,39
Reinvent the tube
The Eisbecher Series consist of 20 different reservoirs that differ between usage, measurement and appearance. There are ten reservoirs within this series that consist of 99% plexi - totally unique! But the main difference between these reservoirs is within the functionality of the different sockets.
Constituents
Bubble Down
It is placed at the bottom of the reservoir to prevent turbulences that could lead air into the watercircle.
Lighttower Standpipe
The "Lighttower" effect creates an astounding visual experience within every watercooling system. The Eisbecher supports this in two different ways: fluid coming from the bottom and coming from the top. The water is being led through the standpipe to the bottom or to the top where it splashes out of eight evenly distributed holes at the end of the pipe to the inner wall of the reservoir. This special watergame is the so called "Lighttower" effect.
Stand
The known feet from the "Eisdecken" find its very way even to the Eisbecher and sustain every combination with a solid stand.
Mountings
There are two mountings placed above and under the pipe for fastening the lot in the casing. The holes in this mounting have a spacing of a 120/140 cooling fan.You can reduce the width of the mountings up to the width of the reservoir and there are three M4 threads availaible per mounting for fastening if you would rather not mount the reservoir at the fan space. These mountings are easily removeable especially when not being used. You will find these mountings on all 20 reservoirs.
Lighting module
The lighting modules consist of plexi and enable the lighting with a 5mm LED. These modules can be installed into all 1/4" holes. They are being used in the lid and occasionally in the socket of the reservoir. This facilitates a unique way to your personalised lighting effects.
Material
All models of the reservoir are availaible in acetal and plexi. So there is something for everone.
Measurements
All reservoirs are availaible in two different sizes: the 150mm version and the 10cm bigger 250mm version. The smaller reservoir comes with only one standpipe coming from the bottom because of its size and the bigger reservoir comes with two: one coming from the top and the other one from the bottom.
The Eisbecher Lighttower All-In-One
Where most reservoirs can only handle one or two different pumps this version can handle a whole row of different pumps. Alternatively, you can even use the Lighttower All-In-One without a pump. This special flexibility of the reservoir falls back onto its sophisticated construction. At the back of the socket of the pump is a 1/2" wide thread where a whole range of different pumpadapters can be installed. This adapter enables an easy mounting of different pumps. The peforated plate and the standpipe are being used in this model as well. This version of the Eisbecher is by far the most versatile.
Included in delivery
Measurements 250mm Version
The Eisbecher Series consist of 20 different reservoirs that differ between usage, measurement and appearance. There are ten reservoirs within this series that consist of 99% plexi - totally unique! But the main difference between these reservoirs is within the functionality of the different sockets.
Constituents
Bubble Down
It is placed at the bottom of the reservoir to prevent turbulences that could lead air into the watercircle.
Lighttower Standpipe
The "Lighttower" effect creates an astounding visual experience within every watercooling system. The Eisbecher supports this in two different ways: fluid coming from the bottom and coming from the top. The water is being led through the standpipe to the bottom or to the top where it splashes out of eight evenly distributed holes at the end of the pipe to the inner wall of the reservoir. This special watergame is the so called "Lighttower" effect.
Stand
The known feet from the "Eisdecken" find its very way even to the Eisbecher and sustain every combination with a solid stand.

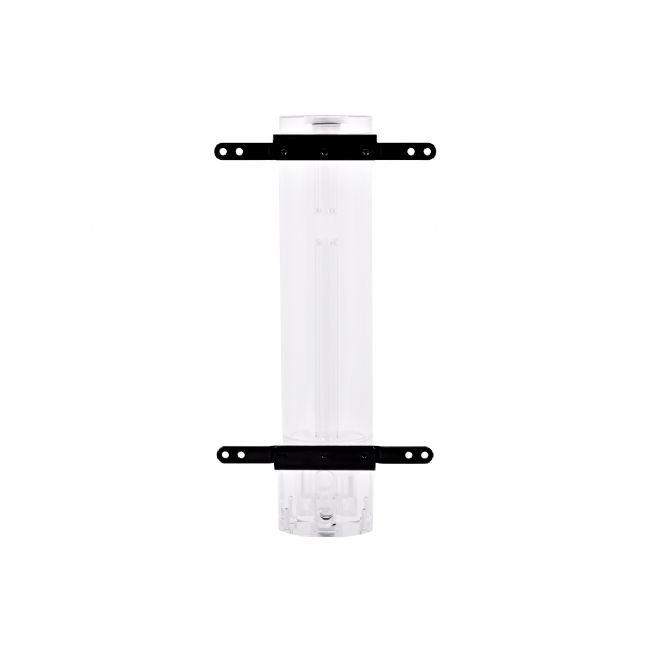

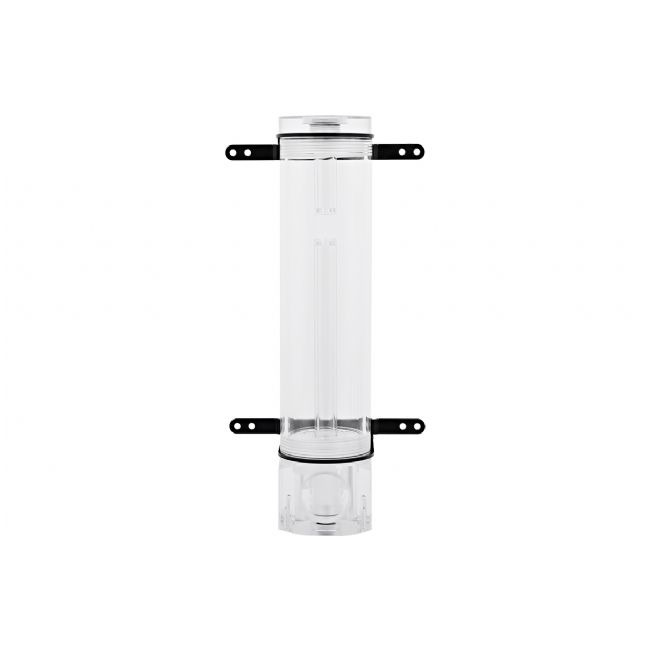

Mountings
There are two mountings placed above and under the pipe for fastening the lot in the casing. The holes in this mounting have a spacing of a 120/140 cooling fan.You can reduce the width of the mountings up to the width of the reservoir and there are three M4 threads availaible per mounting for fastening if you would rather not mount the reservoir at the fan space. These mountings are easily removeable especially when not being used. You will find these mountings on all 20 reservoirs.

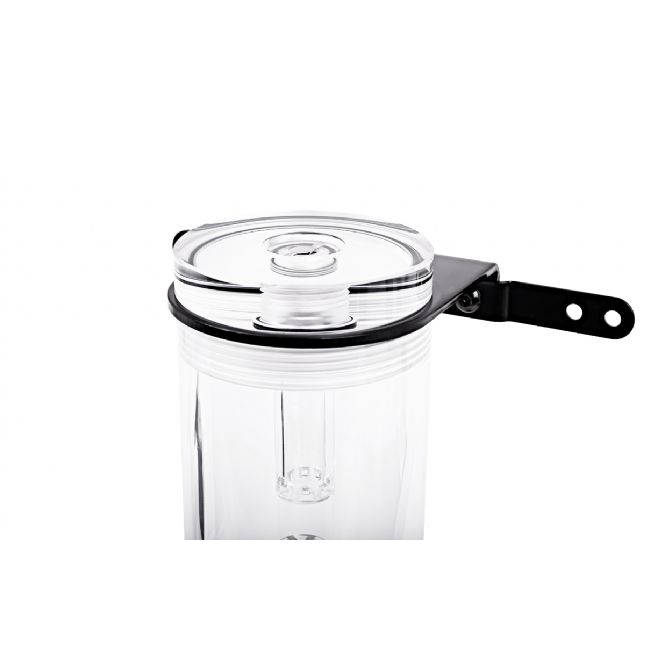

Lighting module
The lighting modules consist of plexi and enable the lighting with a 5mm LED. These modules can be installed into all 1/4" holes. They are being used in the lid and occasionally in the socket of the reservoir. This facilitates a unique way to your personalised lighting effects.
Material
All models of the reservoir are availaible in acetal and plexi. So there is something for everone.
Measurements
All reservoirs are availaible in two different sizes: the 150mm version and the 10cm bigger 250mm version. The smaller reservoir comes with only one standpipe coming from the bottom because of its size and the bigger reservoir comes with two: one coming from the top and the other one from the bottom.

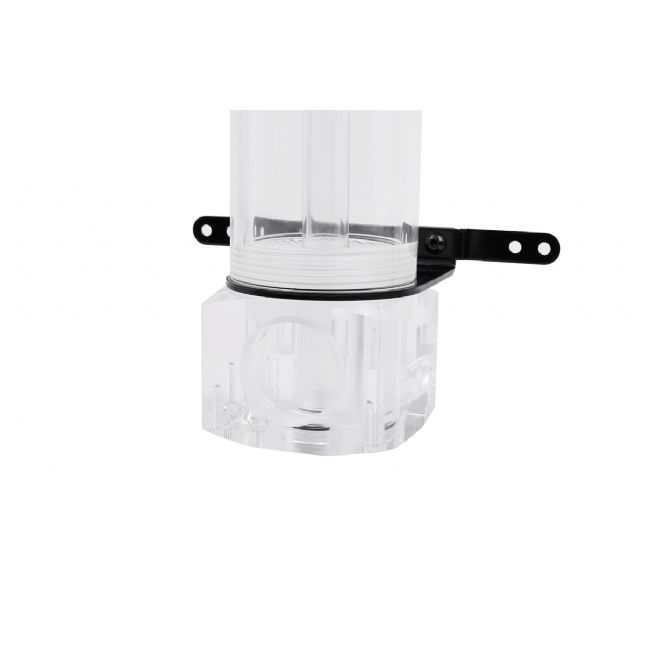

The Eisbecher Lighttower All-In-One

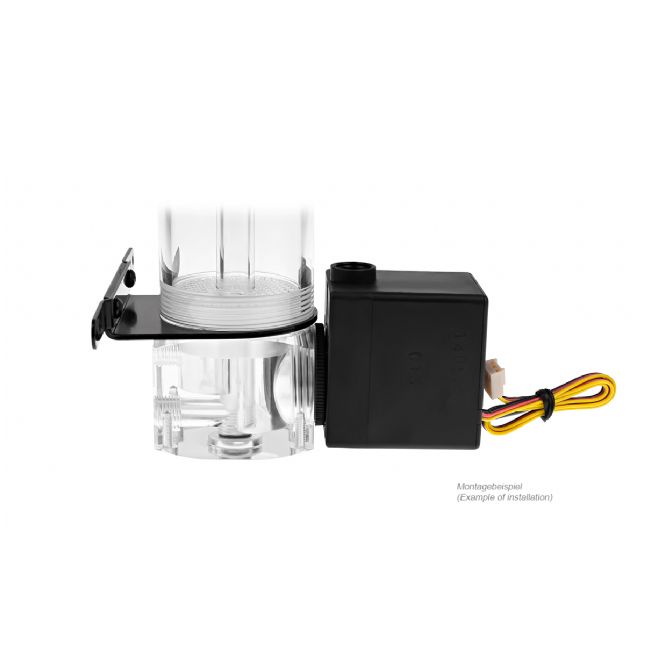

Where most reservoirs can only handle one or two different pumps this version can handle a whole row of different pumps. Alternatively, you can even use the Lighttower All-In-One without a pump. This special flexibility of the reservoir falls back onto its sophisticated construction. At the back of the socket of the pump is a 1/2" wide thread where a whole range of different pumpadapters can be installed. This adapter enables an easy mounting of different pumps. The peforated plate and the standpipe are being used in this model as well. This version of the Eisbecher is by far the most versatile.

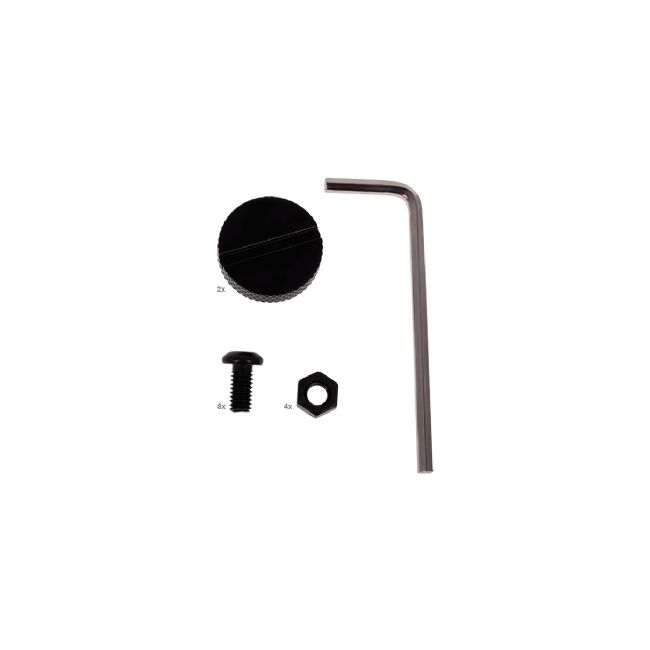

Included in delivery
- 4x M4x16mm screw
- 4x M4x8mm screw
- 4x M4 nut
- 1x G1/4" locking screw
- 1x pump adapter for Phobya DC12 - 220
- 1x pump adapter for Phobya DC12 - 260/400
- 1x pump adapter for Eheim 1046/1048
- *three additional adapter for Eheim 1260/1262, Laing D5 inkl. 1/2" AG (Standard Laing attachment), Hydor L30 separate available
- 1x allen key 2,5mm
Measurements 250mm Version
- Measurements with mounting (LxWxD): 270 x 136 x 80mm
- Measurements without mounting(LxW): 270 x 60mm
- Diameter of the Plexitube: 60mm
- Capacity: 360ml
