Scythe Kotetsu Mark II TUF Gaming Alliance
Levertijd: niet voorradig, levertijd onbekend. € 48,15

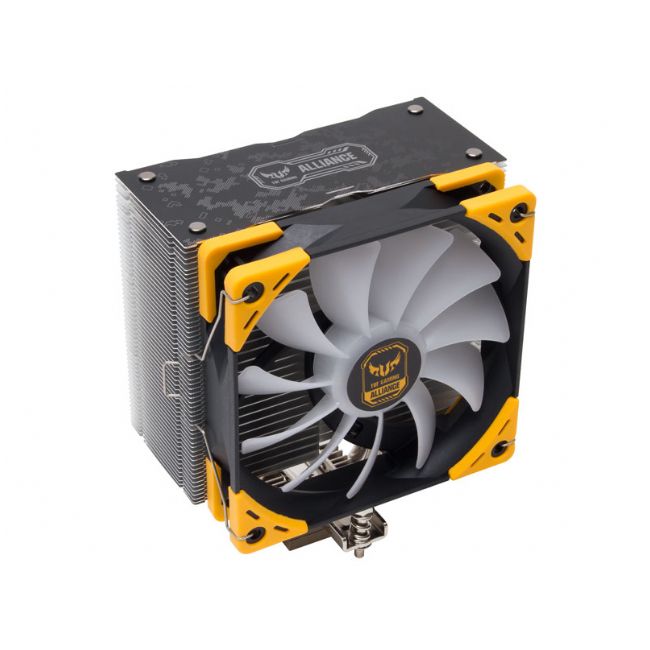

In cooperation with Asus, Scythe presents the TUF Gaming Alliance version of the Kotetsu Mark II CPU cooler. Design elements, such as a topplate decorated with the TUF logo and the well-known pattern, as well as a 120mm RGB LED Kaze Flex fan with matching yellow rubber decouplers optically connect the cooler with the remaining TUF Gaming Alliance components. Four nickel-plated heatpipes complete the overall picture and convey an appealing and valuable look. The heatsink features compact dimensions and is designed for maximum compatibility. A height of only 154 mm fits almost every standard PC-Case while the asymmetrical design of the heatsink ensures full memory and graphics card compatibility. The optimized and user-friendly mounting system allows for installation on all current CPU-sockets including Intels Socket 2066 and AMDs AM4.
Hyper Precision Mounting System III
The secure and user-friendly Hyper Precision Mounting system centers around a preassembled mounting bar, which features spring-loaded screws to guarantee perfect contact pressure. In combination with an updated backplate and rubber / plastic spacers the system offers a convenient installation process and compatibility to all current sockets including AMD®s AM4 and Intel®s LGA 2066 platforms.

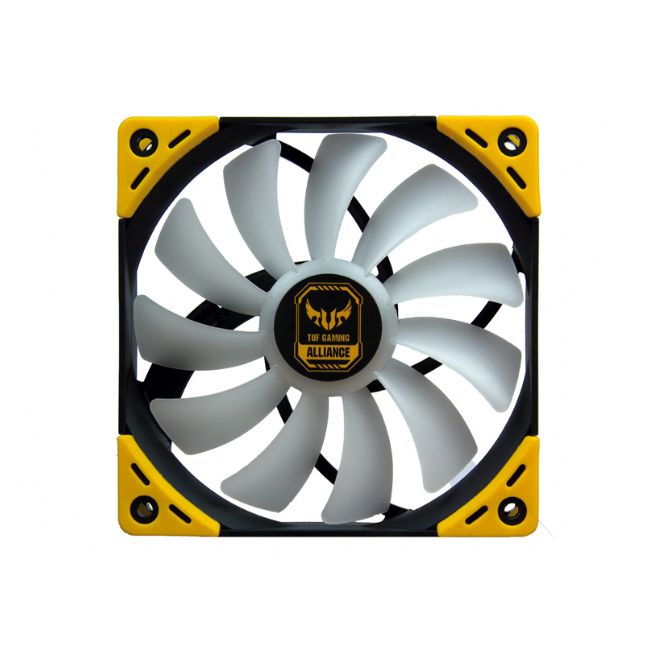

Kaze Flex 120 RGB PWM Fan
The Kotetsu Mark II is equipped with a PWM fan from the award-wining Kaze Flex series, operating in a range from 300 to 1200 RPM. The self-contained liquid bearing (Sealed Precision FDB) reduces friction and wear to a minimum, resulting in an average lifespan of 120 000 hours. Rubber pads mounted in the fan frame have a decoupling effect and prevent the transfer of vibrations.
Asymmetrical and low height design
Aiming for maximum compatibility the heatsink is not centered above the baseplate, but slightly offset to the side and back. This assymetrical design allows for unrestricted use of all memory slots. It also points the heatsink away from the graphics card, leaving enough space for even the bulkiest GPU coolers. With a compact height of only 154 mm the Kotetsu Mark II easily fits all standard PC Cases.
Specifications
Fan specifications
* Please note that an original backplate with screw mounting is needed for installation on mainboards with AMD sockets. Please check before buying if the backplate is fixed by screws (example)! If the backplate uses plastic-pins, mounting of this cooler is not possible.
Hyper Precision Mounting System III
The secure and user-friendly Hyper Precision Mounting system centers around a preassembled mounting bar, which features spring-loaded screws to guarantee perfect contact pressure. In combination with an updated backplate and rubber / plastic spacers the system offers a convenient installation process and compatibility to all current sockets including AMD®s AM4 and Intel®s LGA 2066 platforms.
Kaze Flex 120 RGB PWM Fan
The Kotetsu Mark II is equipped with a PWM fan from the award-wining Kaze Flex series, operating in a range from 300 to 1200 RPM. The self-contained liquid bearing (Sealed Precision FDB) reduces friction and wear to a minimum, resulting in an average lifespan of 120 000 hours. Rubber pads mounted in the fan frame have a decoupling effect and prevent the transfer of vibrations.
Asymmetrical and low height design
Aiming for maximum compatibility the heatsink is not centered above the baseplate, but slightly offset to the side and back. This assymetrical design allows for unrestricted use of all memory slots. It also points the heatsink away from the graphics card, leaving enough space for even the bulkiest GPU coolers. With a compact height of only 154 mm the Kotetsu Mark II easily fits all standard PC Cases.
Specifications
- Model Name: Kotetsu Mark II TUF Gaming Alliance CPU Cooler
- Model Number: SCKTT-2000TUF
- EAN: 4571225057071
- Compatibility Intel: LGA775 / LGA115x / LGA1366 / LGA2066 / LGA2011(-v3)
- Compatibility AMD*: AMx / FMx
- Dimensions: 136 x 154 x 85 mm. (Including fan more dimensions)
- Weight: 645 g (Including fan)

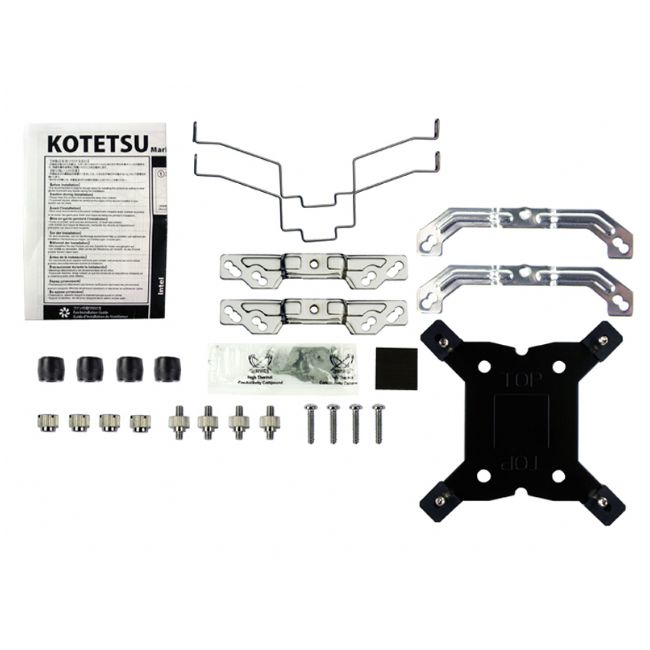

- Accessory: Mounting parts for Intel and AMD sockets, RGB LED fan, fan clips, thermal grease, installation manual
- Baseplate Material: Nickel-plated Copper 38 x 38 mm
Fan specifications
- Model Name: Kaze Flex 120 RGB PWM Fan Size: 120 x 120 x 27 mm Noise Level: 4.0 ~ 24.9 dBA Air Flow: 16.6 ~ 51.17 CFM Fan Speed: 300 rpm (±200) ~ 1200 rpm (±10%) Voltage / Current: DC 12V / 0,13A Static Pressure: 0.75 ~ 10.3 Pa / 0.076 ~ 1.5 mmH²O Bearing Type: Sealed Precision FDB
* Please note that an original backplate with screw mounting is needed for installation on mainboards with AMD sockets. Please check before buying if the backplate is fixed by screws (example)! If the backplate uses plastic-pins, mounting of this cooler is not possible.
