der8auer Delid-Die-Mate 2
Levertijd: niet voorradig, levertijd onbekend. € 34,90
Roman "der8auer" Hartung has now discovered that the Delid The Mate 2 works not only with CPUs from Intel, but also with the Raven Ridge APUs. The heat spreader of the APU fits exactly into the shape of the Delid The Mate 2. In order for the slide to rest evenly on the board of the CPU, Der8auer has designed a suitable adapter and added the slightly larger screw that was required by the adapter to this expansion kit.
Easy to use
To do this, place the APU with the heatspreader down in the Delid The Mate 2. Then the adapter is placed upright with the recess for the screw up to the board. The slide is in turn clamped to the adapter. Now the M6 ??x 60 hex socket head screw is threaded through the rear end of the Delid Mate 2 as usual and screwed into the slide.
Now use the hex wrench to slowly move the carriage until the board has detached itself from the heatspreader. AMD's APUs require a little more power than the Intel CPUs. Now heatspreader and CPU can be cleaned from the thermal grease. The adapter is also suitable for removing the adhesive from the heatspreader and the CPU. Because its lasered edges are relatively sharp, but causes no damage to the materials of the CPU.
*** Important warning! ***
Removing the CPU heatspreader is at your own risk and is always accompanied by the complete loss of the manufacturer's warranty and warranty !
Technical details:
Delivery:
Easy to use
To do this, place the APU with the heatspreader down in the Delid The Mate 2. Then the adapter is placed upright with the recess for the screw up to the board. The slide is in turn clamped to the adapter. Now the M6 ??x 60 hex socket head screw is threaded through the rear end of the Delid Mate 2 as usual and screwed into the slide.
Now use the hex wrench to slowly move the carriage until the board has detached itself from the heatspreader. AMD's APUs require a little more power than the Intel CPUs. Now heatspreader and CPU can be cleaned from the thermal grease. The adapter is also suitable for removing the adhesive from the heatspreader and the CPU. Because its lasered edges are relatively sharp, but causes no damage to the materials of the CPU.
*** Important warning! ***
Removing the CPU heatspreader is at your own risk and is always accompanied by the complete loss of the manufacturer's warranty and warranty !
Technical details:
- Dimensions: 70 x 70 x 60 mm
- Type: CPU heatspreader remover
- Material: aluminum
- Color: Black anodized (laser engraved with the 8auer logo)
- Compatible with all Intel Ivy Bridge, Haswell, Devil's Canyon, Broadwell, Skylake, Kaby Lake, and Coffee Lake desktop 115 Sockets (no "-E" versions)
Delivery:

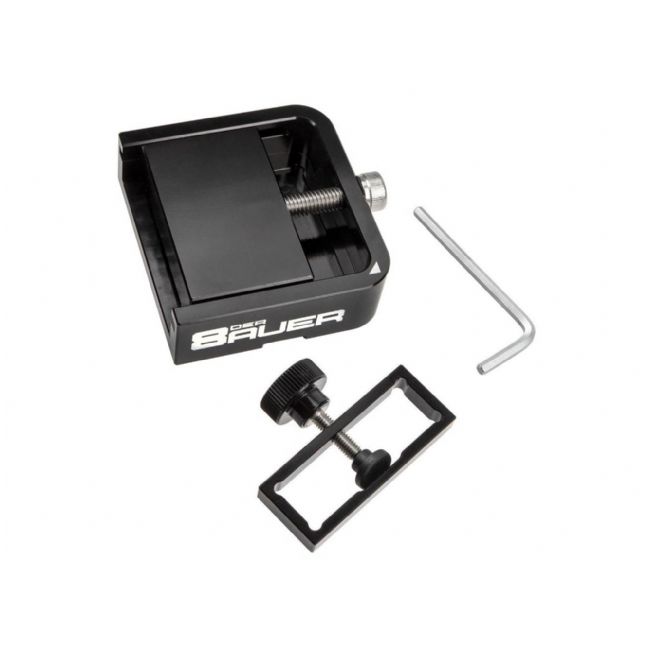

- 1x Delid The Mate 2 (three components)
- 1x Allen key
- 1x hexagon socket screw
- 1x positioning aid for re-bonding
