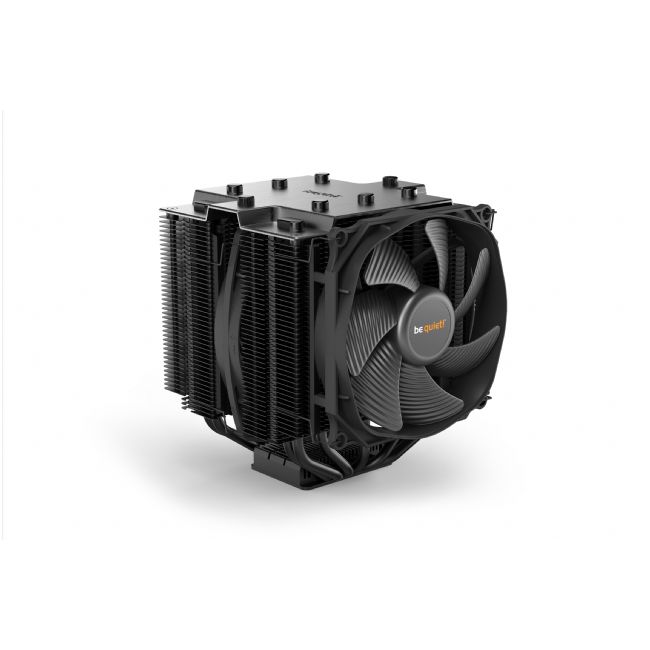

Be Quiet! Dark Rock Pro TR4
Levertijd: direct uit voorraad leverbaar. € 88,82
IMMENSE COOLING POWER
For AMD TR4 motherboards
No compromise in silence and performance for overclocked systems and demanding graphics applications! Dark Rock Pro TR4 is designed for AMD TR4 only and provides an impressive rating of 250W TDP.
VIRTUALLY INAUDIBLE OPERATION
Even at 100% PWM fan speed noise is an insignificant 24.3dB(A)
The two Silent Wings PWM fans feature advanced fluid-dynamic bearings, smooth six-pole motors and airflow-optimized fan blades. The front Silent Wings 3 fan provides extremely high air pressure, thanks to a funnel-shaped air inlet in the frame. Decoupled fan mounting with vibration-isolating elements on the heat sink.
HIGHLY ADVANCED DESIGN
The core features that result in high-end cooling
Dark Rock Pro TR4 is equipped with seven advanced technology 6mm copper heat pipes that maximize the heat conductance. Airflow-optimized, wave-contoured cooling fins with small dots on their surfaces increase the air circulation. The special black coating with ceramic particles makes a perfect transfer of heat possible.
DOUBLE-TOWER LAYOUT
Powerful cooling for your components
Dark Rock Pro TR4 contains two aluminum heat sinks. The cutouts provided enhance its RAM compatibility. Two fans are pre-installed. It is also possible to add another 120mm fan for even better cooling.
USER-FRIENDLY ELEGANCE
Stylish and easy to install
The mounting kit for the Dark Rock Pro TR4 cooler is completely black, perfectly matching the black design of the cooler itself. You can conveniently install the cooler on the motherboard from above. The brushed aluminum top cover with its diamond cut finish adds a touch of elegance to this high-end cooler.
- Designed for AMD TR4 only
- Two virtually inaudible Silent Wings PWM fans
- Funnel-shaped frame of the front fan for high air pressure
- Achieves only 24.3dB(A) at maximum fan speed
- Seven high-performance copper heat pipes
- Airflow-optimized cooling fins; cutouts enhance the RAM compatibility
- Easily installable black installation kit can be mounted from above
- Brushed aluminum top cover with diamond cut finish
For AMD TR4 motherboards
No compromise in silence and performance for overclocked systems and demanding graphics applications! Dark Rock Pro TR4 is designed for AMD TR4 only and provides an impressive rating of 250W TDP.
VIRTUALLY INAUDIBLE OPERATION
Even at 100% PWM fan speed noise is an insignificant 24.3dB(A)
The two Silent Wings PWM fans feature advanced fluid-dynamic bearings, smooth six-pole motors and airflow-optimized fan blades. The front Silent Wings 3 fan provides extremely high air pressure, thanks to a funnel-shaped air inlet in the frame. Decoupled fan mounting with vibration-isolating elements on the heat sink.
HIGHLY ADVANCED DESIGN
The core features that result in high-end cooling
Dark Rock Pro TR4 is equipped with seven advanced technology 6mm copper heat pipes that maximize the heat conductance. Airflow-optimized, wave-contoured cooling fins with small dots on their surfaces increase the air circulation. The special black coating with ceramic particles makes a perfect transfer of heat possible.
DOUBLE-TOWER LAYOUT
Powerful cooling for your components
Dark Rock Pro TR4 contains two aluminum heat sinks. The cutouts provided enhance its RAM compatibility. Two fans are pre-installed. It is also possible to add another 120mm fan for even better cooling.
USER-FRIENDLY ELEGANCE
Stylish and easy to install
The mounting kit for the Dark Rock Pro TR4 cooler is completely black, perfectly matching the black design of the cooler itself. You can conveniently install the cooler on the motherboard from above. The brushed aluminum top cover with its diamond cut finish adds a touch of elegance to this high-end cooler.
- Designed for AMD TR4 only
- Two virtually inaudible Silent Wings PWM fans
- Funnel-shaped frame of the front fan for high air pressure
- Achieves only 24.3dB(A) at maximum fan speed
- Seven high-performance copper heat pipes
- Airflow-optimized cooling fins; cutouts enhance the RAM compatibility
- Easily installable black installation kit can be mounted from above
- Brushed aluminum top cover with diamond cut finish
| Poorten & interfaces | |
| Fan connector | 4-pin |
| Gewicht en omvang | |
| Gewicht | 1,18 kg |
| Maten ventilator (b x d x h) | 135 x 135 x 22 mm |
| Warmte pijpen diameter | 6 mm |
| Breedte verpakking | 205 mm |
| Diepte verpakking | 181 mm |
| Hoogte verpakking | 212 mm |
| Gewicht verpakking | 1,58 kg |
| Energie | |
| Nominale netspanning | 0,08 A |
| Thermal Design Power (TDP) | 250 W |
| Inhoud van de verpakking | |
| Type verpakking | Doos |
| Meegeleverde kabels | Ventilator |
| Montage gereedschap | Ja |
| Koelpasta | Ja |
| Design | |
| Materiaal | Aluminium |
| Aantal ventilatoren | 2 ventilator(en) |
| Aantal warmte pijpen | 7 |
| RoHS compliance | Ja |
| Prestatie | |
| Geschikt voor | Processor |
| Soort | Koeler |
| Ventilator diameter | 120/135 mm |
| Supported processor sockets | Socket TR4 |
| Compatibele processors | AMD Ryzen |
| Rotatiesnelheid ( max) | 1500 RPM |
| Geluidsniveau (lage snelheid) | 12,8 dB |
| Geluidsniveau (hoge snelheid | 24,3 dB |
| Pulsbreedtemodulatie-ondersteuning | Ja |
| Type lager | Fluid dynamic bearing (FDB) |
| Gemiddelde storingsinterval (MTTF) | 300000 uur |
| Logistieke gegevens | |
| Breedte van de omdoos | 56,1 cm |
| Lengte omdoos | 42,7 cm |
| Hoogte van de omdoos | 45,9 cm |
| Gewicht omdoos | 20,8 kg |
| Hoeveelheid per omdoos | 12 stuk(s) |
