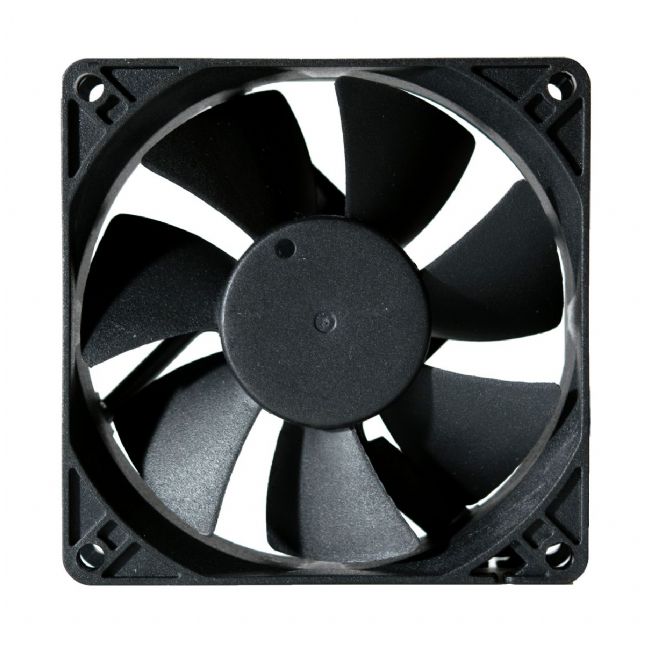

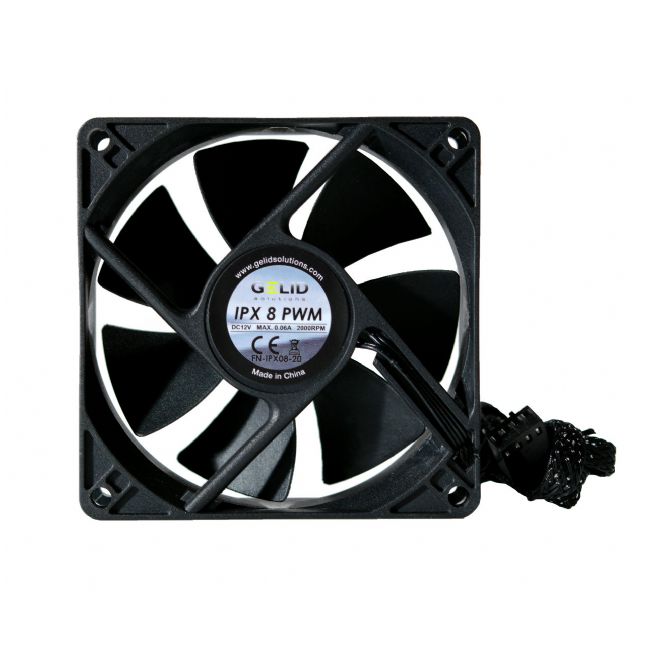

GELID Solutions IPX 8 PWM - 80 x 80 x 25 mm.

The IPX Industrial Fan series provides protection against harmful deposits of dust and water from harsh environments. It is IP56 rated and allows continuous operation in extreme conditions and high humidity industrial environments.

The IPX 4 PWM, IPX 6 PWM and IPX 8 PWM feature precisely balanced impeller which guarantees stable operation even at the highest rotation speeds possible. The IPX 4 PWM, IPX 6 PWM and IPX 8 PWM also integrate ultra-durable mechanics, a double ball-bearing configuration from the renowned Japanese manufacturer NMB Tech. The new Smart PWM IC, designed specifically for the IPX Industrial Fan series, eliminates any clicking noise and controls fan speed according to heat-source load. The IPX 4 PWM, IPX 6 PWM and IPX 8 PWM have comprehensively optimized blades, the result of software simulations and real-prototype test which provide higher performance and dramatically improved airflow distribution without increasing noise level.

Specifications

• Included: 4 mounting screws
• Air Flow (CFM/CMH): 27
• Bearing: Dual Ball Bearing
• Cable Length (mm): 500
• Connector: 4pin PWM
• Current (A): 0.11
• Dimension of Fan (mm): 80x80x25
• Fan Speed (RPM): 900 – 2000
• Noise Level (dBA): 21.5
• Safety Approvals: CE, RoHS Compliant
• Static Pressure (mmAq): 1.65
• Voltage (V): 12
• Warranty (years): 5
• Weight (g): 80
• Water & dust proof level: IP56
