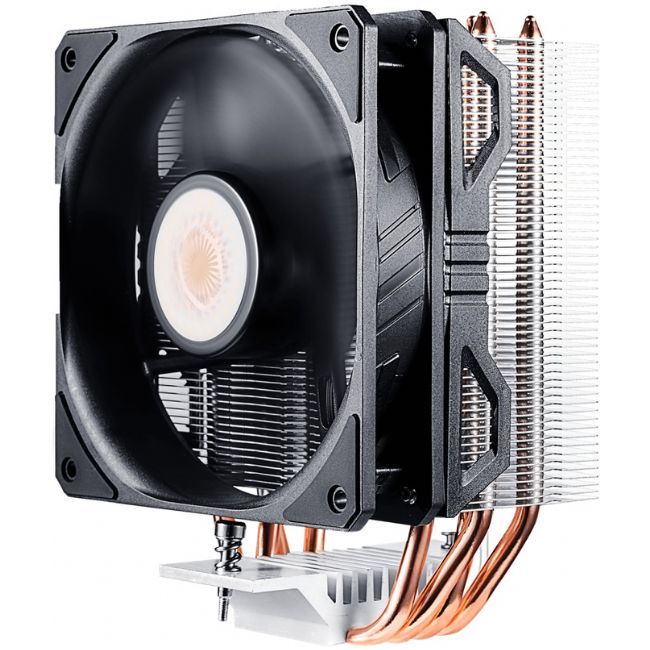

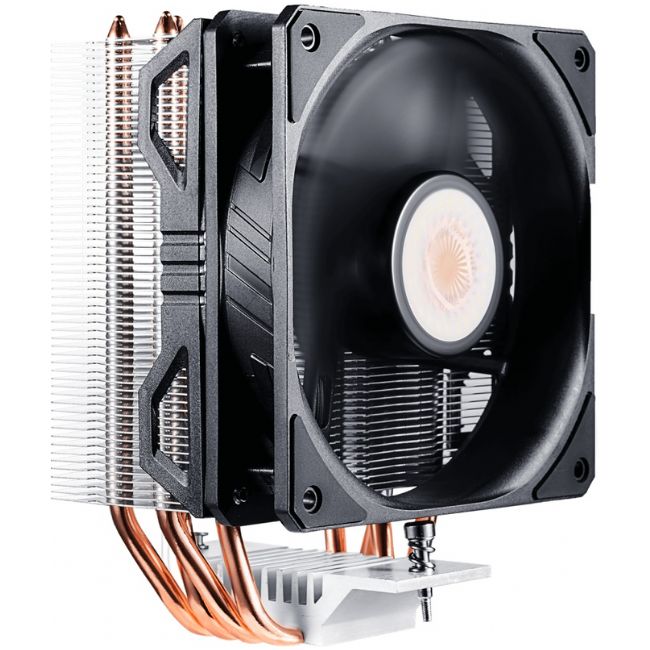

Cooler Master Hyper 212 EVO V2

Cooler Master Hyper 212 EVO V2 is redesigned with an Asymmetrical tilt to guarantee RAM Clearance, along with revised brackets to assure the ease of installation. It is also paired with Cooler Masters' new SickleFlow 120 fan to improve cooling and acoustic performances.

X-VENTS DESIGN
Positioned in a 45-degree angle and surrounding the heatpipe, each fin-blade features X-shaped vents that create areas of high and low air pressure, resulting in several controlled vortices. These small and chaotic turbulences produce strong gusts that reduce overall airflow but improve airflow where it matters the most - next to the heatpipes

DIRECT CONTACT TECHNOLOGY
4 heatpipes with Direct Contact Technology creates a sleek contact surface area for maximize heat dissipation

SICKLEFLOW 120 FAN
Newly Optimized blade design with updated curve that provides best balance between airflow and static pressure to take the heat away while remain extremely silence.

QUIET OPERATION
Low vibrations and quiet fan allows for nearly inaudible levels. More than 10% decreased of fan noise level from previous model.

EASY INSTALLATION
Tool-free mounting system ensures hassle-free installation. Universal retention brackets are compatible with latest Intel and AMD socket CPU.

Specifications

• Product Number: RR-2V2E-18PK-R1
• Exterior Color: Silver, Black
• CPU Socket: LGA2066, LGA2011-v3, LGA2011, LGA1200, LGA1366, LGA1156, LGA1155, LGA1151, LGA1150, LGA775, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
• Dimensions (L x W x H): 120 x 80 x 155 mm
• Heat Sink Material: 4 Heat Pipes, Direct Contact, Aluminum Fins
• Fan Dimensions (L x W x H): 120 x 120 x 25 mm
• Fan Quantity: 1 PCS
• Fan Speed: 650-1800 RPM (PWM) ± 10%
• Fan Airflow: 62 CFM (Max)
• Fan Noise Level: 8 - 27 dBA
• Fan Air Pressure: 2.52 mmH2O
• Fan MTTF: 160,000 Hours
• Fan Power Connector: 4-Pin (PWM)
• Fan Rated Voltage: 12VDC
• Fan Rated Current: 0.15A
• Series: Hyper
• Cooler Type: Air Cooler
• Heatpipes: 4
