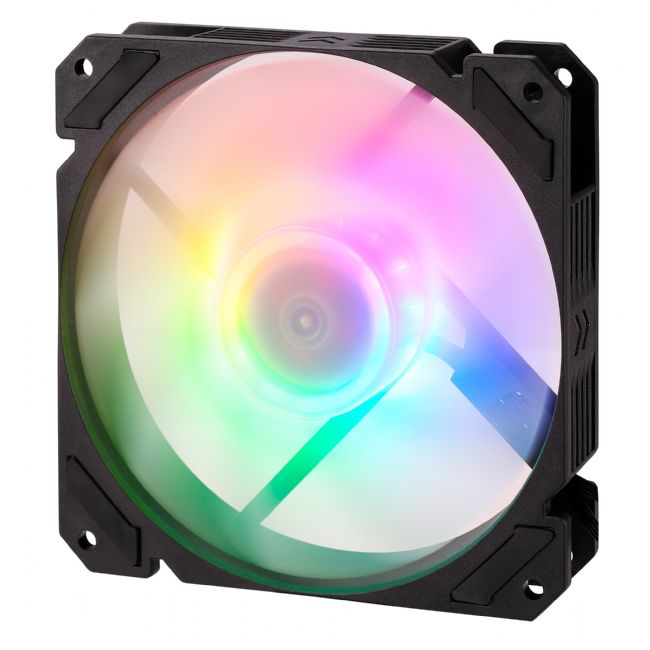

GELID Solutions Zodiac 120mm Extreme Performance ARGB Fan - 120 x 120 x 25 mm.
Levertijd: direct uit voorraad leverbaar. € 9,05
ZODIAC introduces a harmonious combination of top-notch technologies and vivid design. It boasts 12 ARGB LEDs illuminating stylish lighting. It features a Hydro Dynamic Bearing for increased reliability and an optimized impeller for enhanced airflow.
In standard RGB applications, this type of fans uses the standard RGB LED header with 4-wiring: 12V, R, G, B. All the LEDs integrated with the fan are then connected onto the same 4 busses, they are all controlled as a whole, so they each will output exactly the same color.
It’s like you set a color for an object in your graphics editor, for example, Red: 25, Green: 50 and Blue: 125, an external RGB controller or motherboard drives the standard RGB LED fan in the same way by altering power on the color busses at a proper duty cycle – the Red, Green and Blue bus, respectively – to output the desired RGB color.
Of course, colors can be managed dynamically, with numerous lighting effects in series. But uniformity of the LEDs – one color for all the LEDs at a time – limits RGB lighting effects to some degree.
Zodiac Individually Addressable RGB (ARGB)
Unlike the standard RGB fans, controls of the individually addressable RGB (ARGB) fans are digital in nature. For this case, the fans use the addressable RGB LED header with 3-wiring: 5V, D, Ground. And the LEDs integrated with the fan have a special companion IC which drives each of them individually: it resides on a one-wire serial bus and sends commands like “LEDs number 3, 5 and 6: switch to green” to set the desired color per individual LED. So, each of the LEDs has its own ID and is controlled independently from the others. In turn, an external app can be used to program the IC giving virtually unlimited options of color modes and effects. Rainbow-circle, rotating colors, multipoint pulsating colors and some other stunningly vivid RGB lighting effects are available only with the ARGB fans. But, as far as this type of fans supports digital RGB controls only, it’s up to your motherboard to provide a full-featured RGB app to discover the excellence of RGB lighting.
Specifications
Voordelige verzending in beschermenvelop mogelijk!
- 12 Full Color RGB LEDs: circularly mounted high-bright LEDs for a stunningly vivid RGB Lighting experience.
- Programmable Digital-RGB Control: limitless color modes and lighting effects via individually addressable RGB LEDs.
- Extreme Static Pressure: powerful impeller with the unprecedented static pressure and performance profile.
- Noiseless Motor Drive IC: newly designed and enhanced motor driver to eliminate clicking noise.
- Hydro Dynamic Bearing: long life Hydro Dynamic bearing guarantee ultra low noise.
- Wide Range RPM: extended fan speed in the range 700 – 1600 RPM.
- Broad Compatibility: All modern motherboards with RGB Sync controls and 5V Addressable RGB (ARGB) headers are supported.
In standard RGB applications, this type of fans uses the standard RGB LED header with 4-wiring: 12V, R, G, B. All the LEDs integrated with the fan are then connected onto the same 4 busses, they are all controlled as a whole, so they each will output exactly the same color.
It’s like you set a color for an object in your graphics editor, for example, Red: 25, Green: 50 and Blue: 125, an external RGB controller or motherboard drives the standard RGB LED fan in the same way by altering power on the color busses at a proper duty cycle – the Red, Green and Blue bus, respectively – to output the desired RGB color.
Of course, colors can be managed dynamically, with numerous lighting effects in series. But uniformity of the LEDs – one color for all the LEDs at a time – limits RGB lighting effects to some degree.
Zodiac Individually Addressable RGB (ARGB)
Unlike the standard RGB fans, controls of the individually addressable RGB (ARGB) fans are digital in nature. For this case, the fans use the addressable RGB LED header with 3-wiring: 5V, D, Ground. And the LEDs integrated with the fan have a special companion IC which drives each of them individually: it resides on a one-wire serial bus and sends commands like “LEDs number 3, 5 and 6: switch to green” to set the desired color per individual LED. So, each of the LEDs has its own ID and is controlled independently from the others. In turn, an external app can be used to program the IC giving virtually unlimited options of color modes and effects. Rainbow-circle, rotating colors, multipoint pulsating colors and some other stunningly vivid RGB lighting effects are available only with the ARGB fans. But, as far as this type of fans supports digital RGB controls only, it’s up to your motherboard to provide a full-featured RGB app to discover the excellence of RGB lighting.
Specifications
- Air Flow (CFM): max. 65.5
- Bearing: Hydro Dynamic
- DC Voltage (V): 12
- Dimensions (mm): 120 x 120 x 25
- Fan Connector: 4 Pin PWM
- Fan Current (A): max. 0.18
- Fan Speed (RPM): 700-1600
- LED Connector: 3 Pin ARGB
- LED Current (A): max. 0.73
- LED Voltage (V): 5
- Noise Level (dBA): max. 35
- Number of LED: 12
- Power Draw (W): max. 5
- Static Pressure (mmH2O): 1.47
- Warranty (years): 3
- Weight (g): 136
