Gigabyte B660M DS3H DDR4 - socket 1700

Levertijd: voorradig bij leverancier, levertijd normaliter 1 tot 5 werkdagen.
€ 127,41

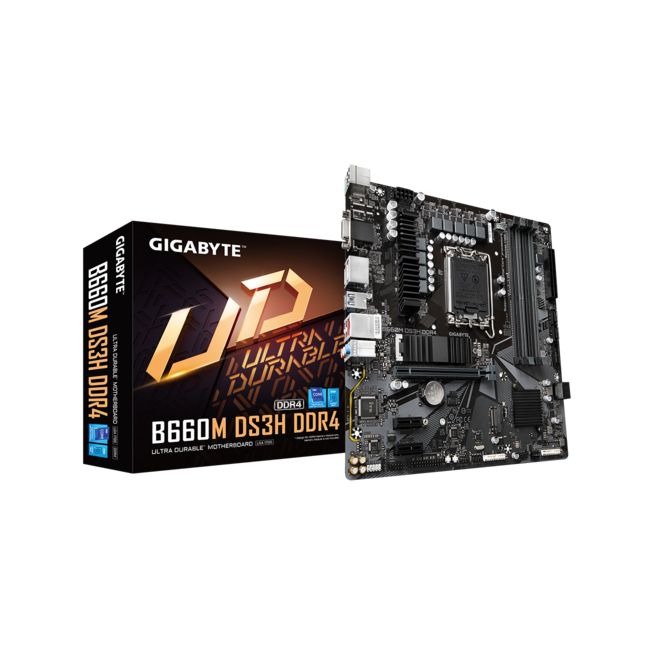

  • Klik op de foto voor een vergroting.
  • Toon alle producten van Gigabyte.
Merk: Gigabyte

EAN code: 4719331830328
SKU code: B660M DS3H DDR4
Processor
ProcessorfabrikantIntel
Processor socketLGA 1700
Compatibele processorsIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor socketsLGA 1700
Geheugen
Ondersteunde geheugen typesDDR4-SDRAM
Aantal geheugenslots4
Maximum intern geheugen128 GB
Geheugen slots typeDIMM
Geheugen kanaalDual-channel
Non-ECCJa
Supported memory clock speeds2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Gewicht en omvang
Breedte244 mm
Diepte244 mm
Hoogte56 mm
Netwerk
WifiNee
Ethernet LANJa
Ethernet interface type2.5 Gigabit Ethernet
Interne aansluitingen
USB 2.0 aansluitingen2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen1
Aantal SATA III connectors4
Aansluiting voor audiopaneel aan voorzijdeJa
Voorpaneel-connectorJa
ATX Power connector (24-pin)Ja
Aansluiting voor CPU koelerJa
Aansluitingen voor behuizingsventilatoren3
EPS power connector (8-pin)Ja
Parallele connectorJa
Serial port headers1
RGB LED-aansluitrailJa
Aansluitingen achterzijde
Aantal USB 2.0-poorten2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A3
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C1
Aantal Ethernet LAN (RJ-45)-poorten1
VGA (D-Sub)poort(en)1
Aantal HDMI-poorten1
PS/2 poort(en)1
Aantal DisplayPorts1
Hoofdtelefoonuitgangen2
Microfoon, line-in ingangJa
Opslag-controllers
Ondersteunde opslagstationinterfacesM.2, PCI Express 4.0, SATA III
Ondersteunde types opslag-drivesHDD & SSD
RAID supportJa
Soorten RAID0, 1, 5, 10
Uitbreidingsmodules
PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 4.x) sleuven1
BIOS
BIOS typeUEFI
Grootte BIOS-geheugen256 Mbit
ACPI version5.0
Versie Desktop Management Interface (DMI)2.7
Systeem Management BIOS (SMBIOS) versie2.7
Overige specificaties
Gewicht941 g
Kenmerken
Component voorPC
Moederbord form factormicro ATX
Moederbord chipset familieIntel
Chipset moederbordIntel B660
Audio-uitgangskanalen7.1 kanalen
Type stroombronATX
Ondersteunt WindowsWindows 10 x64, Windows 11 x64
Code geharmoniseerd systeem (HS)84733020
