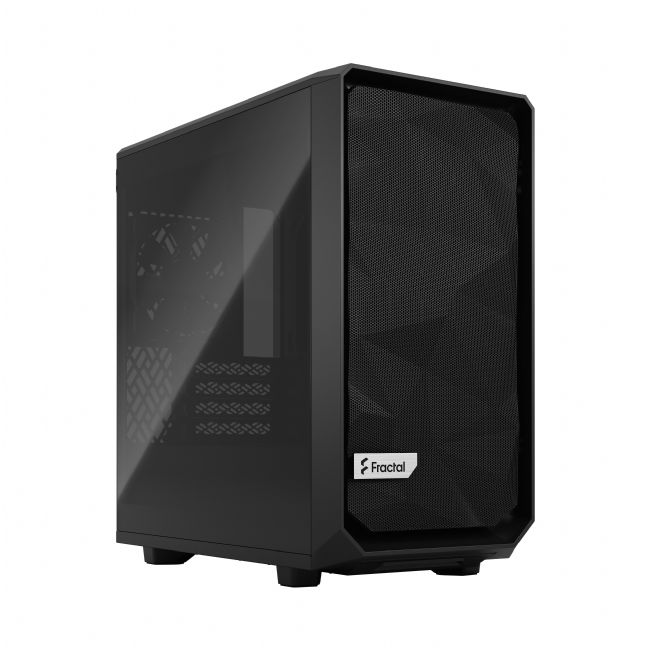

Fractal Design Meshify 2 Mini - zwart
Levertijd: voorradig bij leverancier, levertijd 1 tot 5 werkdagen. € 128,46
The Meshify 2 Mini offers an excellent combination of airflow and flexibility, in a form-factor optimized for mATX. The bold yet refined exterior design, with its asymmetric angular mesh front, is complemented by a flush TG panel and a fully removable top.
Slick and streamlined
Detachable front filter
Refined airflow
All access
More in store
Specifications
- Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
- Compact yet roomy interior makes the most of mATX with high space efficiency and robust component support
- Open interior layout creates a smooth airflow path from front intake to rear exhaust
Slick and streamlined
- Compact yet roomy interior makes the most of mATX with high space efficiency and robust component support
- Room for GPUs up to 306 mm long including front fans with 331 mm total space
- Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support
Detachable front filter
- Front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts
- Double layered front filter with detachable nylon for increased airflow
Refined airflow
- The open interior layout creates a smooth airflow path from intake to rear exhaust
- Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 1x 140 mm Dynamic X2 GP fans included)
All access
- The fully removable top panel and fan bracket offers excellent interior access and easy cable routing
- Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
More in store
- Flexible storage options with two HDD/SSD drive trays and four dedicated SSD mounts (2 brackets included)
- Integrated cable guides with cable straps further simplify cable management behind the board
Specifications
- 3.5"/2.5" Universal drive mounts: 2 (included)
- Dedicated 2.5" drive mounts: 4 (2 included)
- Expansion slots: 4
- Front interface: 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
- Total fan mounts: 7x 120 or 4x 140 mm
- Front fan: 3x 120/ 2x 140 mm (1x Dynamic X2 GP-14 included)
- Top fan: 2x 120/140 mm
- Rear fan: 1x 120 mm, (1x Dynamic X2 GP-12 included)
- Bottom fan: 1x 120 mm (requires removal of HDD cage)
- Dust filters: Top, front and bottom
- Cable routing space: 15-25 mm
- Cable routing grommets: Yes
- Fixed cable straps: Yes
- Tool-less push-to-lock: Top, front and side panels
- Captive thumbscrews: HDD, SSD and PSU brackets
- Left side panel: Tempered glass
- Right side panel: Steel
- Case dimensions (LxWxH): 396 x 205 x 406 mm
- Case dimensions w/o feet/protrusions/screws: 384 x 205 x 390 mm
- Package dimensions (LxWxH): 457 x 277 x 462 mm
- Net weight: 6,62 kg
- Gross weight: 7,68 kg
