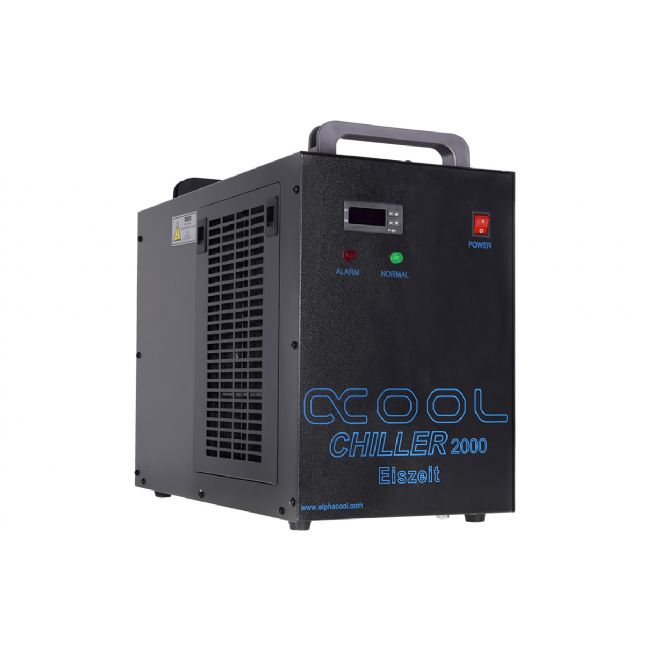

Alphacool Eiszeit 2000 Chiller - zwart
Levertijd: niet voorradig, levertijd onbekend. € 1.192,00
The Alphacool “Eiszeit” is a compressor cooler with a maximum cooling power of 1500W. Unlike most so-called Chillers or circulating coolers, the Eiszeit has a high-performance integrated pump.
Highlights
With the “Eiszeit”, you get a compressor cooler designed by Alphacool. With it, you can keep your system – or more than one system – at a temperature you pre-set, automatically regulated for you. The Eiszeit has a maximum cooling power of 1500W. Entering your settings is easily done through the Eiszeit’s display, and you can set the temperature in precise increments of 0.3° Kelvin. If necessary, you can reach temperatures far below room temperature.
Another highlight is the integrated high-performance pump with a maximum head of 10m. This means a separate pump is no longer necessary. If the pump performance proves to be too strong, a restrictor can be integrated into the cooling loop via a ball valve or check valve. The G1/4” connectors can fit nearly all standard water cooling attachments. This gives the Eiszeit outstanding compatibility compared to other current products like CPU coolers and graphics card coolers.
The Eiszeit also has security functions, such as surge protection for the compressor and an alarm indicating the flow rate is too low or the temperature is too high.
Using the Eiszeit is relatively simple. After connecting it to the cooling loop, the loop needs to be filled via the fill port on top of the Eiszeit. The integrated reservoir holds 9L; additionally, you will need enough coolant to fill the complete loop.
ATTENTION: The temperature can NOT be set below 20 ° C.
Technical Details
Materials
Scope of Delivery
NOTICE: Because all of the Eiszeit’s functions are tested after manufacturing, some coolant does remain in the system when it is shipped. This is NOT grounds for a return and does not indicate that this item is B-stock or an exchanged item.
Highlights
- Integrated pump with 10m head and 600L per hour.
- Cooling power of 1500W
- Cooling can be regulated in 0.3 Kelvin increments.
- Large reservoir with 9L capacity
- All connectors fit standard G1/4” threads
With the “Eiszeit”, you get a compressor cooler designed by Alphacool. With it, you can keep your system – or more than one system – at a temperature you pre-set, automatically regulated for you. The Eiszeit has a maximum cooling power of 1500W. Entering your settings is easily done through the Eiszeit’s display, and you can set the temperature in precise increments of 0.3° Kelvin. If necessary, you can reach temperatures far below room temperature.
Another highlight is the integrated high-performance pump with a maximum head of 10m. This means a separate pump is no longer necessary. If the pump performance proves to be too strong, a restrictor can be integrated into the cooling loop via a ball valve or check valve. The G1/4” connectors can fit nearly all standard water cooling attachments. This gives the Eiszeit outstanding compatibility compared to other current products like CPU coolers and graphics card coolers.
The Eiszeit also has security functions, such as surge protection for the compressor and an alarm indicating the flow rate is too low or the temperature is too high.
Using the Eiszeit is relatively simple. After connecting it to the cooling loop, the loop needs to be filled via the fill port on top of the Eiszeit. The integrated reservoir holds 9L; additionally, you will need enough coolant to fill the complete loop.
ATTENTION: The temperature can NOT be set below 20 ° C.
Technical Details
- Voltage: 230V
- Frequency: 50Hz
- Current: 2.4~3.3A
- Power consumption: 660W
- Compressor power: 0.49/0.57KW (0.66/0.77HP)
- Refrigeration capacity: 1.41/1.70KW
- Refrigerant: R-134a
- Refrigerant charge: 380g
- Precision: ±0.3℃
- Reducer: Capillary
- Protection: Surge protection for compressor, flow alarm, high temperature alarm
- Pump power: 0.03KW
- Tank capacity: 9L
- Inlet and outlet: G1/4 Inner threads connector
- Max. Lift: 10 meters
- Max. Flow: 10 L/min
- Net weight: 29Kgs
- Noise level: 65 db(A)
- Dimensions (LxWxH): 560 x 280 x 470mm
Materials
- Reservoir: Polypropylene
- Tube soft: Silicone
- Tube hard: PU
Scope of Delivery
- Alphacool Eiszeit 2000 Chiller - black
- Manual in multiple language
- Alarm output connector
- EU power plug
NOTICE: Because all of the Eiszeit’s functions are tested after manufacturing, some coolant does remain in the system when it is shipped. This is NOT grounds for a return and does not indicate that this item is B-stock or an exchanged item.
